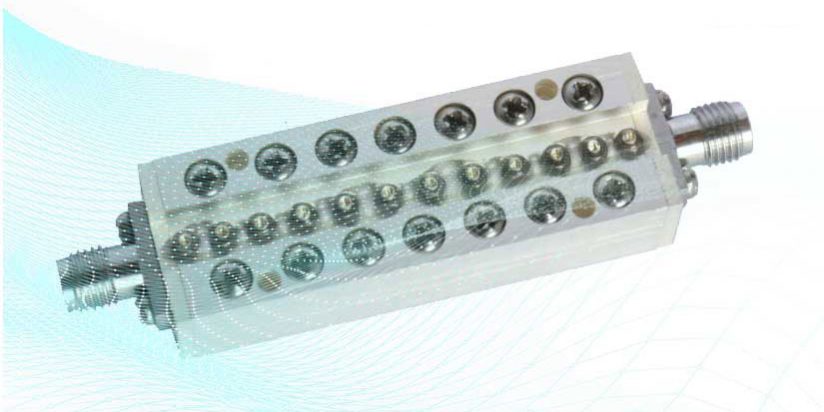

频率高达170GHz的带通滤波器,阻带抑制优良。广泛应用于多个领域。
型号 | 通带(GHz) | 插损(dB,最大值) | 驻波(最大值) | 阻带衰减(dB) | 阻带衰减(dB) | 连接器 |
QBF-300-600-30 | 0.3-0.6 | 1.8 | 1.5 | 30@0.26GHz | 30@0.65GHz | Pin |
QBF-585-615-60 | 0.585-0.615 | 0.5 | 2 | 60@0.45GHz | 60@0.75GHz | SMA |
QBF-590-610-40 | 0.59-0.61 | 0.5 | 1.3 | 40@0.49GHz | 40@0.71GHz | SMA |
QBF-710-730-45 | 0.71-0.73 | 2.5 | 1.3 | 45@0.695GHz | 50@0.735GHz | SMA |
QBF-800-1600-40 | 0.8-1.6 | 5 | 2.2 | 40@0.75GHz | 40@1.65GHz | SMA |
QBF-880-890-70 | 0.88-0.89 | 3 | 1.5 | * | 70@0.925GHz | SMA |
QBF-885-889-40 | 0.885-0.889 | 2.5 | 1.5 | 40@0.88GHz | 70@0.926GHz | SMA |
QBF-885-960-40 | 0.885-0.960 | 1.6 | 1.3 | 40@0.88GHz | 70@0.926GHz | SMA |
QBF-929-934-70 | 0.929-0.934 | 1.7 | 1.2 | 70@0.947GHz | 70@0.956GHz | N |
QBF-950-1050-40 | 0.95-1.05 | 2 | 1.5 | 40@0.9GHz | 40@1.1GHz | SMA |
QBF-960-1215-60 | 0.96-1.215 | 1.5 | 2 | 60@0.86GHz | 60@1.393GHz | N |
QBF-975-1025-60 | 0.975-1.025 | 0.5 | 2 | 60@0.75GHz | 60@1.25GHz | SMA |
QBF-980-1020-60 | 0.98-1.02 | 1 | 1.45 | 60@0.9GHz | 60@1.1GHz | SMA |
QBF-1000-2000-45 | 1-2 | 0.5 | 1.5 | 45@0.793GHz | 45@2.167GHz | SMA |
QBF-1070-1110 | 1.07-1.11 | 1 | 1.5 | * | * | SMA |
QBF-1200-1400-20 | 1.2-1.4 | 0.3 | 1.35 | 20@1GHz | 20@1.6GHz | N |
QBF-1200-1700 | 1.2-1.7 | 1.5 | 2 | * | * | N |
QBF-1200-1800 | 1.2-1.8 | 1 | 2 | * | * | SMA |
QBF-1300-1320-70 | 1.3-1.32 | 1 | 1.5 | 70@1.24GHz | 70@1.38GHz | SMA |
QBF-1380-1400-70 | 1.38-1.4 | 1.3 | 1.5 | 70@1.32GHz | 70@1.46GHz | SMA |
QBF-1400-2600-30 | 1.4-2.6 | 1 | 1.5 | 30@1GHz | 30@3GHz | SMA |
QBF-1613.5-1626.5-23 | 1.6135-1.6265 | 2 | 1.5 | 23@1.61GHz | 23@1.63GHz | SMA |
QBF-1615.5-1626-30 | 1.6155-1.626 | 3 | 1.5 | 30@1.611GHz | 30@1.631GHz | SMA |
QBF-1702.4-1709.4-25 | 1.7024-1.7094 | 10 | 2 | 25@1.699GHz | 25@1.711GHz | N |
QBF-1805-1888-60 | 1.805-1.888 | 2 | 1.5 | 60@1.685GHz | 60@2-3GHz | SMA |
QBF-1880-1920-50 | 1.88-1.92 | 1 | 1.5 | 50@1.5GHz | 50@2.3GHz | SMA |
QBF-1920-1980-70 | 1.92-1.98 | 1.5 | 1.5 | 70@1.9GHz | 70@2.003GHz | N |
QBF-1920-1980-60 | 1.92-1.98 | 1 | 1.5 | 60@1.9GHz | 60@2GHz | N |
QBF-1950-2050-40 | 1.95-2.05 | 2 | 1.5 | 40@1.9GHz | 40@2.1GHz | SMA |
QBF-2000-4000-60 | 2~4 | 1 | 1.6 | 60@1.5GHz | 60@4.5GHz | SMA |
QBF-2010-2025-55 | 2.01-2.025 | 2 | 1.5 | 55@1.735GHz | 55@2.3GHz | SMA |
QBF-2025-2120-30 | 2.025-2.12 | 1 | 1.5 | * | 30@2.2GHz | SMA |
QBF-2055-2075-38 | 2.055-2.075 | 1.5 | 1.4 | 38@2GHz | 60@2.242GHz | SMA |
QBF-2057-2063-90 | 2.057-2.063 | 1.7 | 1.5 | * | 90@2.247GHz | SMA |
QBF-2099-2105-90 | 2.099-2.105 | 1.7 | 1.5 | * | 90@2.282GHz | SMA |
QBF-2200-2300-30 | 2.2-2.3 | 1 | – | * | 30@2.2GHz | SMA |
QBF-2200-2400-30 | 2.2-2.4 | 1 | – | 30@2.1GHz | * | SMA |
QBF-2200-2800-30 | 2.2-2.8 | 1 | 2 | 30@2GHz | 30@3GHz | SMA |
QBF-2200-3000-60 | 2.2-3 | 1.5 | 2 | 60@1.8GHz | 60@3.4GHz | N |
QBF-2225-2375-50 | 2.225-2.375 | 2 | 1.4 | 50@2.155GHz | 50@2.425GHz | SMA |
QBF-2232-2252-30 | 2.232-2.252 | 1.2 | 1.5 | 30@2.065GHz | 30@2.38GHz | SMA |
QBF-2250-2270-80 | 2.25-2.27 | 1.1 | 1.5 | 80@2.1GHz | 80@2.45GHz | SMA |
QBF-2400-2500-50 | 2.4-2.5 | 0.5 | 1.2 | 50@2.312GHz | 50@2.582GHz | SMA |
QBF-2400-3600-30 | 2.4-3.6 | 1 | 1.5 | 30@2GHz | 30@4GHz | SMA |
QBF-2400-5600-60 | 2.4-5.6 | 1 | 1.4 | 60@2.05GHz | 60@6.075GHz | SMA |
QBF-2400-6000-50 | 2.4-6 | 1 | 1.4 | 50@1.96GHz | 50@6.4GHz | SMA |
QBF-2430-2470-75 | 2.43-2.47 | 2 | 1.3 | 75@2.38GHz | 80@2.52GHz | SMA |
QBF-2635-2685-60 | 2.635-2.685 | 3 | 1.5 | 60@2.58GHz | 60@2.745GHz | SMA |
QBF-2650-4050-90 | 2.65-4.05 | 1 | 1.5 | 90@7.96GHz | 90@9.38GHz | SMA |
QBF-2700-3500-60 | 2.7~3.5 | 0.9 | 1.7 | 60@2.4GHz | 60@3.8GHz | SMA |
QBF-2830-2930-20 | 2.83-2.93 | 0.5 | 1.5 | 20@2.78GHz | 20@2.98GHz | N |
QBF-2835-2885-60 | 2.835-2.885 | 3 | 1.5 | 60@2.78GHz | 60@2.945GHz | SMA |
QBF-2935-2985-60 | 2.935-2.985 | 3 | 1.5 | 60@2.88GHz | 60@3.045GHz | SMA |
QBF-2950-3050-40 | 2.95-3.05 | 2 | 1.5 | 40@2.9GHz | 40@3.1GHz | SMA |
QBF-3000-3500-50 | 3-3.5 | 0.5 | 1.3 | 50@1.2GHz | 50@12GHz | SMA |
QBF-3000-4200-30 | 3-4.2 | 1.5 | 2 | 30@2.6GHz | 30@4.6GHz | N |
QBF-3100-1060-35 | 3.1-10.6 | 1.1 | 2 | 48@1GHz | 35@1.143GHz | SMA |
QBF-3200-4000-40 | 3.2-4 | 1 | 2 | 40@6.4GHz | 40@9.6GHz | SMA |
QBF-3200-3800-30 | 3.2-3.8 | 1 | 1.5 | 30@3GHz | 30@4GHz | SMA |
QBF-3200-4400-50 | 3.2-4.4 | 1.5 | 1.5 | 60@2.9GHz | 50@4.7GHz | SMA |
QBF-3400-4600-30 | 3.4-4.6 | 1 | 1.5 | 30@3GHz | 50@5GHz | SMA |
QBF-3500-6000-50 | 3.5-6 | 0.5 | 1.5 | 50@2.5GHz | 50@7GHz | SMA |
QBF-3700-4200-30 | 3.7-4.2 | 3 | 1.5 | 30@3.65GHz | 30@4.25GHz | N |
QBF-3750-6250-60 | 3.75-6.25 | 2 | 2 | 60@3.1GHz | 60@6.9GHz | SMA |
QBF-3800-5500-40 | 3.8-5.5 | 1 | 1.5 | 55@2.7GHz | 40@6.3GHz | SMA |
QBF-3950-4050-25 | 3.95-4.05 | 2 | 1.5 | 25@3.9GHz | 25@4.1GHz | SMA |
QBF-4000-6000-70 | 4~6 | 2 | 2 | 70@DC~3.6GHz | 60@6.38~8GHz | SMA |
QBF-4000-6000-40 | 4-6 | 1 | 1.5 | 40@3.4GHz | 40@7GHz | SMA |
QBF-4000-6000-30 | 4-6 | 1 | 1.8 | 45@3GHz | 30@7GHz | SMA |
QBF-4200-4800-30 | 4.2-4.8 | 1 | 1.5 | 30@4GHz | 30@5GHz | SMA |
QBF-4400-5600-30 | 4.4-5.6 | 1 | 1.5 | 30@4GHz | 30@6GHz | SMA |
QBF-4400-6000-45 | 4.4-6 | 1.5 | 1.5 | 45@4.1GHz | 60@7GHz | SMA |
QBF-4700-8800-35 | 4.7-8.8 | 1 | 2 | 35@4GHz | 35@10GHz | SMA |
QBF-4950-5050-25 | 4.95-5.05 | 2 | 1.5 | 25@4.9GHz | 25@5.1GHz | SMA |
QBF-5000-8000-30 | 5-8 | 1.5 | 2 | 30@3.5GHz | 30@9.5GHz | SMA |
QBF-5200-5800-30 | 5.2-5.8 | 1 | 1.5 | 30@5GHz | 30@6GHz | SMA |
QBF-5300-5900-40 | 5.3-5.9 | 2 | 2 | 40@5.25GHz | * | SMA |
QBF-5400-6600-30 | 5.4-6.6 | 1 | 1.5 | 30@5GHz | 30@7GHz | SMA |
QBF-5500-8000-50 | 5.5-8 | 0.5 | 1.5 | 50@4.5GHz | 50@9GHz | SMA |
QBF-5710-5810-30 | 5.71-5.81 | 0.5 | 1.5 | 30@2.88GHz | * | N |
QBF-5841-6249-50 | 5.841~6.249 | 1 | 1.5 | 50@DC~4.85GHz | 50@7.15~15GHz | SMA |
QBF-5950-6050-25 | 5.95-6.05 | 2 | 1.5 | 25@5.9GHz | 25@6.1GHz | SMA |
QBF-5950-7450-45 | 5.95-7.45 | 1.7 | 1.6 | 70@5.2GHz | 45@7.8GHz | SMA |
QBF-5950-8300-40 | 5.95-8.3 | 1 | 1.5 | 40@5.4GHz | 40@9GHz | SMA |
QBF-6000-8192-20 | 6~8.192 | 3 | 1.8 | 20@5.7GHz | 20@8.5GHz | SMA |
QBF-6200-6800-30 | 6.2-6.8 | 1 | 1.5 | 30@6GHz | 30@7GHz | SMA |
QBF-6400-7600-30 | 6.4-7.6 | 1 | 1.5 | 30@6GHz | 30@8GHz | SMA |
QBF-6402-6720-50 | 6.402-6.72 | 1 | 1.5 | 50@6.138GHz | 50@6.77GHz | SMA |
QBF-6600-8600-60 | 6.6-8.6 | 1 | 1.5 | 60@5.8GHz | 60@9.4GHz | 2.92mm |
QBF-6800-7000-25 | 6.8-7 | 2 | 1.5 | 25@6.7GHz | * | SMA |
QBF-6800-7800-40 | 6.8~7.8 | 2 | 1.5 | 40@6.2GHz | 40@8.4GHz | SMA |
QBF-6800-11000-50 | 6.8-11 | 1 | 2 | 50@5.8GHz | 50@12GHz | SMA |
QBF-6800-13000-35 | 6.8-13 | 1.5 | 1.5 | 35@6GHz | 35@13.8GHz | 2.92mm |
QBF-6867.2-7500-30 | 6.8672~7.5 | 2 | 1.5 | 10@6.5925GHz | 30@5~6.3288GHz | SMA |
QBF-7000-7400-40 | 7~7.4 | 1.2 | 1.5 | 40@DC~6.76GHz | 40@7.64~10GHz | SMA |
QBF-7000-8000-30 | 7-8 | 1.5 | 1.5 | 30@6.8GHz | 30@8.2GHz | SMA |
QBF-7000-11600-35 | 7-11.6 | 1 | 2 | 35@6GHz | 60@12.8GHz | SMA |
QBF-7005-7015-35 | 7.005-7.015 | 4 | 2 | 35@6.99GHz | * | SMA |
QBF-7100-8000-50 | 7.1-8 | 1 | 1.5 | 50@6GHz | 50@9GHz | SMA |
QBF-7200-7800-30 | 7.2-7.8 | 1.5 | 1.5 | 30@7GHz | 30@8GHz | SMA |
QBF-7300-8300-40 | 7.3~8.3 | 2 | 1.5 | 40@6.7GHz | 40@9GHz | SMA |
QBF-7400-8600-30 | 7.4-8.6 | 1 | 1.5 | 30@7GHz | 30@9GHz | SMA |
QBF-7400-12600-40 | 7.4~12.6 | 1.5 | 1.6 | 40@DC~6GHz | 40@14~18GHz | SMA |
QBF-7400-14200-35 | 7.4-14.2 | 1.5 | 1.5 | 35@6.6GHz | 35@15GHz | 2.92mm |
QBF-7500-12000-25 | 7.5-12 | 0.5 | 1.5 | 25@6.5GHz | 25@13GHz | SMA |
QBF-7650-8350-50 | 7.65~8.35 | 3 | 1.5 | 50@7.15GHz | 50@8.5GHz | SMA |
QBF-7715-8695-80 | 7.715~8.695 | 3 | 1.5 | 80@7.5GHz | 80@8.91GHz | SMA |
QBF-7950-8050-40 | 7.95-8.05 | 3 | 1.5 | 40@7.9GHz | 40@8.1GHz | SMA |
QBF-8000-12000-30 | 8-12 | 1 | 1.8 | 45@7GHz | 30@13GHz | SMA |
QBF-8150-8250-40 | 8.15-8.25 | 3 | 1.5 | 40@8.1GHz | 40@8.3GHz | SMA |
QBF-8192-16384-20 | 8.192~16.384 | 3 | 1.8 | 20@7.1GHz | 20@17.5GHz | SMA |
QBF-8200-8800-30 | 8.2-8.8 | 1.5 | 1.5 | 30@8GHz | 30@9GHz | SMA |
QBF-8250-10250-90 | 8.25-10.25 | 1 | 1.5 | 90@13.57GHz | 90@15.57GHz | SMA |
QBF-8350-12200-40 | 8.35-12.2 | 0.7 | 1.5 | 40@5.55GHz | 40@14GHz | SMA |
QBF-8400-9600-30 | 8.4~9.6 | 2 | 1.5 | 30@DC~8GHz | 30@10~18GHz | SMA |
QBF-8500-9500-40 | 8.5~9.5 | 2 | 1.5 | 40@7.6GHz | 40@10.3GHz | SMA |
QBF-8700-9300-40 | 8.7-9.3 | 1.5 | 1.5 | 40@8.3GHz | 40@9.7GHz | SMA |
QBF-8700-12800-35 | 8.7-12.8 | 1 | 2 | 35@8GHz | 35@14GHz | SMA |
QBF-8775-9225-50 | 8.775-9.225 | 0.6 | 1.5 | 50@7.775GHz | 50@10.225GHz | SMA |
QBF-8750-9250-40 | 8.75-9.25 | 1.5 | 1.5 | 40@8.5GHz | 40@9.5GHz | SMA |
QBF-8800-9400-25 | 8.8-9.4 | 0.8 | 1.5 | 25@8.6GHz | 70@10.2GHz | SMA |
QBF-9000-10000-40 | 9~10 | 2 | 1.5 | 40@8.3GHz | 40@10.6GHz | SMA |
QBF-9000-14000-40 | 9~14 | 1.5 | 1.8 | 40@DC~8GHz | 40@15~23GHz | SMA |
QBF-9000-14000-50 | 9-14 | 1 | 1.8 | 50@8GHz | 50@15GHz | SMA |
QBF-9195-9505-60 | 9.195-9.505 | 1 | 1.5 | 60@8.5GHz | 60@10.19GHz | SMA |
QBF-9200-9800-30 | 9.2-9.8 | 1.5 | 1.5 | 30@9GHz | 30@10GHz | SMA |
QBF-9250-10750-60 | 9.25~10.75 | 1.2 | 1.7 | 60@8.9GHz | 60@11.1GHz | SMA |
QBF-9350-11350-30 | 9.35-11.35 | 1.2 | 1.3 | 30@7GHz | 45@18GHz | 2.92mm |
QBF-9400-10600-30 | 9.4-10.6 | 1.5 | 1.5 | 30@9GHz | 30@11GHz | SMA |
QBF-9600-16000-50 | 9.6-16 | 1 | 1.5 | 50@12GHz | 60@18.2GHz | 2.92mm |
QBF-9700-9800-50 | 9.7-9.8 | 0.5 | 1.5 | 50@9GHz | 50@10.5GHz | SMA |
QBF-9700-10300-40 | 9.7-10.3 | 1.5 | 1.5 | 40@9.3GHz | 40@10.7GHz | SMA |
QBF-9900-10100-70 | 9.9-10.1 | 1 | 1.5 | 70@9GHz | 70@11GHz | SMA |
QBF-10000-10200-70 | 10-10.2 | 2 | 1.5 | 70@9GHz | 70@11GHz | SMA |
QBF-10200-10800-30 | 10.2-10.8 | 1.5 | 1.5 | 30@10GHz | 30@11GHz | SMA |
QBF-10200-12300-90 | 10.2-12.3 | 1 | 1.5 | 90@DC~7.5GHz | 90@15.52~20GHz | SMA |
QBF-10400-11600-30 | 10.4-11.6 | 1.5 | 1.5 | 30@10GHz | 30@12GHz | SMA |
QBF-10425-10575-30 | 10.425~10.575 | 0.6 | 1.3 | 30@10.2GHz | 30@10.8GHz | SMA |
QBF-10500-18000-45 | 10.5-18 | 1 | 1.5 | 45@9.25GHz | 45@19GHz | SMA |
QBF-10700-11300-40 | 10.7-11.3 | 1.5 | 1.5 | 40@10.3GHz | 40@11.7GHz | SMA |
QBF-11000-15400-60 | 11-15.4 | 1 | 1.5 | 60@9.2GHz | 60@17.2GHz | SMA |
QBF-11200-11800-30 | 11.2-11.8 | 1.5 | 1.5 | 30@11GHz | 30@12GHz | SMA |
QBF-11400-12600-30 | 11.4-12.6 | 1.5 | 1.5 | 30@11GHz | 30@13GHz | SMA |
QBF-11487-12000-30 | 11.487~12 | 2 | 1.5 | 10@11.0275GHz | 30@9~10.5864GHz | SMA |
QBF-11500-16000-25 | 11.5-16 | 0.5 | 1.5 | 25@10.5GHz | 25@17GHz | SMA |
QBF-11700-12300-40 | 11.7-12.3 | 1.5 | 1.5 | 40@11.3GHz | 40@12.7GHz | SMA |
QBF-12000-17000-50 | 12-17 | 1 | 1.4 | 50@11GHz | 50@18GHz | 2.92mm |
QBF-12000-18000-50 | 12-18 | 1 | 1.2 | 50@8.2GHz | 50@20.8GHz | SMA |
QBF-12000-18000-25 | 12-18 | 1 | 1.8 | 35@11GHz | 25@19GHz | 2.92mm |
QBF-12000-20000-35 | 12-20 | 1 | 1.5 | 35@9GHz | 60@26GHz | 2.92mm |
QBF-12200-12800-30 | 12.2-12.8 | 1.5 | 1.5 | 30@11.95GHz | 30@13.05GHz | SMA |
QBF-12400-13600-30 | 12.4-13.6 | 1.5 | 1.5 | 30@12GHz | 30@14GHz | SMA |
QBF-12700-13300-40 | 12.7-13.3 | 1.5 | 1.5 | 40@12.3GHz | 40@13.7GHz | SMA |
QBF-12700-16800-35 | 12.7-16.8 | 1 | 2 | 35@12GHz | 35@18GHz | SMA |
QBF-13000-18000-25 | 13-18 | 1 | 1.8 | 35@12GHz | 25@19GHz | SMA |
QBF-13200-13800-30 | 13.2-13.8 | 1.5 | 1.5 | 30@12.92GHz | 30@14.05GHz | SMA |
QBF-13400-14600-30 | 13.4-14.6 | 1.5 | 1.5 | 30@13GHz | 30@15GHz | SMA |
QBF-13400-17800-60 | 13.4-17.8 | 1 | 1.5 | 60@11.6GHz | 60@19.6GHz | 2.92mm |
QBF-13500-22000-50 | 13.5-22 | 1.5 | 2 | 50@9GHz | 50@28GHz | SMA |
QBF-13700-14300-40 | 13.7-14.3 | 1.5 | 1.5 | 40@13.3GHz | 40@14.7GHz | SMA |
QBF-14000-14500-35 | 14-14.5 | 0.5 | 1.3 | 35@12.75GHz | * | SMA |
QBF-14000-20000-85 | 14-20 | 1 | 1.5 | 85@9GHz | 85@25GHz | 2.92mm |
QBF-14000-20000-50 | 14-20 | 1 | 1.5 | 50@12GHz | 60@22.6GHz | 2.92mm |
QBF-14000-23600-30 | 14-23.6 | 1 | 1.8 | 30@11.8GHz | * | 2.92mm |
QBF-14000-26200-35 | 14-26.2 | 1.5 | 1.8 | * | 35@28GHz | 2.92mm |
QBF-14200-14800-60 | 14.2-14.8 | 1 | 1.3 | 60@13.7GHz | 60@15.3GHz | SMA |
QBF-14200-14800-30 | 14.2-14.8 | 1.5 | 1.5 | 30@13.95GHz | 30@15.5GHz | SMA |
QBF-14260-16060-40 | 14.26-16.06 | 1 | 1.2 | 40@14.06GHz | 40@16.26GHz | SMA |
QBF-14400-15400-35 | 14.4-15.4 | 0.5 | 1.4 | 48@13GHz | 35@16GHz | SMA |
QBF-14400-15600-30 | 14.4-15.6 | 1.5 | 1.5 | 30@14GHz | 30@16GHz | SMA |
QBF-14700-15300-40 | 14.7-15.3 | 1.3 | 1.5 | 40@DC~14.46GHz | 40@15.54~18GHz | SMA |
QBF-14950-15050-25 | 14.95-15.05 | 2 | 1.5 | 25@14.8GHz | 25@15.2GHz | SMA |
QBF-15000-16000-40 | 15~16 | 2 | 1.5 | 40@DC~14.5GHz | 40@16.5~18GHz | SMA |
QBF-15000-20000-55 | 15-20 | 1 | 1.5 | 55@14GHz | 55@22GHz | SMA |
QBF-15000-20000-50 | 15-20 | 1 | 1.4 | 50@14GHz | 50@22GHz | 2.92mm |
QBF-15000-25000-30 | 15-25 | 2 | 1.5 | 70@10GHz | 30@40GHz | SMA |
QBF-15200-15800-40 | 15.2-15.8 | 1.5 | 1.5 | 40@14.95GHz | 40@16.05GHz | SMA |
QBF-15400-16600-30 | 15.4-16.6 | 1.5 | 1.5 | 35@15GHz | 30@17GHz | SMA |
QBF-15500-20000-20 | 15.5-20 | 0.5 | 1.5 | 20@14.5GHz | 20@21GHz | 2.92mm |
QBF-15600-16200-60 | 15.6-16.2 | 1 | 1.3 | 60@15.1GHz | 60@16.7GHz | SMA |
QBF-15700-16300-40 | 15.7-16.3 | 1.5 | 1.5 | 40@15.3GHz | 40@16.7GHz | SMA |
QBF-15900-16500-40 | 15.9~16.5 | 1.3 | 1.5 | 40@DC~15.66GHz | 40@16.74~18GHz | SMA |
QBF-16000-16200-40 | 16~16.2 | 1.5 | 1.5 | 40@DC~15.76GHz | 40@16.44~18GHz | SMA |
QBF-16384-24576-20 | 16.384~24.576 | 3 | 1.8 | 20@15GHz | 20@26GHz | SMA |
QBF-18000-20000-50 | 18-20 | 1.2 | 1.5 | 50@16.7GHz | 50@21.35GHz | SMA |
QBF-18000-20000-30 | 18~20 | 2 | 1.5 | 30@DC~17.2GHz | 30@20.8~30GHz | 2.92mm |
QBF-18000-21000-50 | 18-21 | 1 | 2 | 50@14.95GHz | 50@24.02GHz | SMA |
QBF-18000-23000-50 | 18~23 | 1 | 1.6 | 50@17GHz | 50@25GHz | SMA |
QBF-18000-24200-50 | 18-24.2 | 1 | 1.5 | 50@17GHz | 60@26.3GHz | 2.92mm |
QBF-18000-25000-80 | 18~25 | 1.5 | 1.8 | 80@DC~14GHz | 85@29~35GHz | 2.92mm |
QBF-18000-26000-35 | 18-26 | 1 | 1.5 | 35@15GHz | 35@29GHz | 2.92mm |
QBF-18000-26500-60 | 18-26.5 | 2 | 1.8 | 60@DC~15GHz | 60@29.5~37GHz | 2.92mm |
QBF-18050-21350-40 | 18.05-21.35 | 2 | 1.5 | 40@17.5GHz | 40@22GHz | 2.92mm |
QBF-18100-21300-30 | 18.1-21.3 | 1 | 1.5 | 45@16.4GHz | 30@23GHz | SMA |
QBF-18400-19600-30 | 18.4-19.6 | 1.5 | 1.5 | 30@18GHz | 30@20GHz | 2.92mm |
QBF-18600-21400-55 | 18.6-21.4 | 1.5 | 1.5 | 55@16GHz | 55@22.4GHz | 2.92mm |
QBF-18600-22600-40 | 18.6-22.6 | 1 | 1.5 | 60@16.8GHz | 40@23.6GHz | 2.92mm |
QBF-18700-19300-40 | 18.7-19.3 | 1.5 | 1.5 | 40@18.3GHz | 40@19.7GHz | 2.92mm |
QBF-18700-22700-20 | 18.7-22.7 | 1.2 | 1.3 | 20@25GHz | 60@6.3GHz | 2.92mm |
QBF-19000-21550-60 | 19-21.55 | 1.3 | 1.5 | 65@18.1GHz | 60@23GHz | 2.92mm |
QBF-19400-20600-30 | 19.4-20.6 | 1.5 | 1.5 | 30@19GHz | 30@21GHz | 2.92mm |
QBF-19500-22500-60 | 19.5-22.5 | 2 | 2 | 60@16.875GHz | * | 2.92mm |
QBF-19500-24000-25 | 19.5-24 | 0.5 | 1.5 | 25@18.5GHz | 25@25GHz | 2.92mm |
QBF-19600-21200-60 | 19.6-21.2 | 1.5 | 1.5 | 60@18.4GHz | 60@22.4GHz | 2.92mm |
QBF-19700-20300-40 | 19.7-20.3 | 1.5 | 1.5 | 40@19.3GHz | 40@20.7GHz | 2.92mm |
QBF-19900-22500-40 | 19.9-22.5 | 2 | 1.5 | 40@16.9GHz | * | 2.92mm |
QBF-19980-20020-30 | 19.98-20.02 | 1.5 | 1.5 | 30@19.5GHz | 30@20.5GHz | 2.92mm |
QBF-20000-21000-25 | 20-21 | 3 | 1.5 | 25@21.14GHz | * | 2.92mm |
QBF-20000-21500-55 | 20-21.5 | 1.5 | 1.5 | 55@18GHz | 55@22.4GHz | 2.92mm |
QBF-20000-22000-30 | 20-22 | 1 | 1.5 | 30@19.2GHz | 30@22.8GHz | 2.92mm |
QBF-20000-23500-40 | 20-23.5 | 2 | 1.5 | 40@19.4GHz | 40@24.3GHz | 2.92mm |
QBF-20000-23600-60 | 20-23.6 | 2 | 1.5 | 60@17.8GHz | 60@25.8GHz | 2.92mm |
QBF-20000-24000-30 | 20-24 | 1 | 1.5 | 30@19.5GHz | 30@24.5GHz | 2.92mm |
QBF-20000-24000-50 | 20-24 | 2 | 1.6 | 50@19GHz | 50@25GHz | SMA |
QBF-20000-25000-50 | 20-25 | 1.3 | 1.8 | 50@19.07GHz | 50@26.35GHz | 2.92mm |
QBF-20100-21300-50 | 20.1-21.3 | 2.5 | 1.5 | 50@18.8GHz | 50@22.8GHz | 2.92mm |
QBF-20200-21200-70 | 20.2-21.2 | 3 | 1.5 | 70@19.7GHz | 70@20.5GHz | 2.92mm |
QBF-20200-21200-80 | 20.2-21.2 | 2 | 1.5 | 80@19.6GHz | * | 2.92mm |
QBF-20400-21600-30 | 20.4-21.6 | 1.5 | 1.5 | 30@20GHz | 30@22GHz | 2.92mm |
QBF-20600-25000-60 | 20.6-25 | 1 | 1.5 | 60@18.8GHz | 60@26.8GHz | 2.92mm |
QBF-20700-21300-40 | 20.7-21.3 | 1.5 | 1.5 | 40@20.3GHz | 40@21.7GHz | 2.92mm |
QBF-20900-26600-60 | 20.9-26.6 | 1.3 | 2 | 60@20.1GHz | 60@28GHz | 2.92mm |
QBF-21000-23000-50 | 21-23 | 0.3 | 1.2 | * | 50@44GHz | WR-42 |
QBF-21000-26000-55 | 21-26 | 1 | 55@20GHz | * | SMA | |
QBF-21000-26000-50 | 21-26 | 1 | 1.4 | 50@20GHz | 50@28GHz | 2.92mm |
QBF-21000-26500-50 | 21-26.5 | 2 | 2 | * | 50@28GHz | 2.92mm |
QBF-21000-28000-50 | 21~28 | 1 | 1.6 | 65@DC~19GHz | 50@30~35GHz | 2.92mm |
QBF-21390-21785-40 | 21.39-21.785 | 3 | 1.8 | 40@20.275GHz | 50@18.775GHz | SMA |
QBF-21400-22600-30 | 21.4-22.6 | 1.5 | 1.5 | 30@21GHz | 30@23GHz | 2.92mm |
QBF-21500-22500-40 | 21.5-22.5 | 3 | 2 | 40@20.2GHz | 40@24GHz | SMA |
QBF-21500-24000-65 | 21.5-24 | 1.5 | 1.5 | 65@20.6GHz | 65@25.5GHz | 2.92mm |
QBF-21500-26500-60 | 21.5-26.5 | 1 | 1.5 | 60@19.5GHz | 60@28.5GHz | 2.92mm |
QBF-21700-22300-40 | 21.7-22.3 | 1.5 | 1.5 | 40@21.3GHz | 40@22.7GHz | 2.92mm |
QBF-21765-22160-40 | 21.765-22.16 | 3 | 1.8 | 40@20.65GHz | 50@19.15GHz | 2.92mm |
QBF-21980-22020-30 | 21.98-22.02 | 1.5 | 1.5 | 30@21.5GHz | 30@22.5GHz | 2.92mm |
QBF-22000-23000-50 | 22-23 | 2 | 2 | 50@21GHz | 50@24GHz | 2.92mm |
QBF-22000-24000-30 | 22-24 | 1 | 1.5 | 30@21.2GHz | 30@24.8GHz | 2.92mm |
QBF-22000-29000-60 | 22-29 | 1.5 | 2 | 60@15GHz | 60@33GHz | 2.92mm |
QBF-22000-29200-70 | 22-29.2 | 1 | 1.5 | 70@17GHz | 70@33GHz | 2.92mm |
QBF-22000-30000-60 | 22-30 | 2 | 2 | 60@33GHz | * | 2.92mm |
QBF-22140-22535-40 | 22.14-22.535 | 3 | 1.8 | 40@21.025GHz | 50@19.525GHz | SMA |
QBF-22200-28400-50 | 22.2-28.4 | 1 | 1.5 | 50@20.2GHz | 60@30.8GHz | 2.92mm |
QBF-22400-23600-30 | 22.4-23.6 | 1.5 | 1.5 | 30@22GHz | 30@24GHz | 2.92mm |
QBF-22500-25500-50 | 22.5-25.5 | 2 | 2 | 50@19.94GHz | 50@29.38GHz | 2.92mm |
QBF-22515-22910-40 | 22.515-22.91 | 3 | 1.8 | 40@21.4GHz | 50@19.9GHz | SMA |
QBF-22700-23300-40 | 22.7-23.3 | 1.5 | 1.5 | 40@22.3GHz | 40@23.7GHz | 2.92mm |
QBF-23000-26500-60 | 23~26.5 | 1.5 | 1.8 | 60@DC~21.3GHz | 60@28.5~40GHz | 2.92mm |
QBF-23000-30000-85 | 23~30 | 1.5 | 1.5 | 85@19GHz | 85@34GHz | 2.92mm |
QBF-23400-24600-30 | 23.4-24.6 | 1.5 | 1.5 | 30@23GHz | 30@25GHz | 2.92mm |
QBF-23500-28000-05 | 23.5-28 | 0.5 | 1.5 | 25@22.5GHz | 5@29GHz | 2.92mm |
QBF-23700-24300-40 | 23.7-24.3 | 1.5 | 1.5 | 40@23.3GHz | 40@24.7GHz | 2.92mm |
QBF-23900-37500-70 | 23.9-37.5 | 3 | 1.5 | 70@15.35GHz | * | 2.92mm |
QBF-23920-24220-60 | 23.92-24.22 | 1 | 1.5 | 60@22GHz | 60@26.14GHz | SMA |
QBF-23930-34980-70 | 23.93-34.98 | 3 | 1.5 | 70@14.73GHz | * | 2.92mm |
QBF-23980-24020-30 | 23.98-24.02 | 1.5 | 1.5 | 30@23.5GHz | 30@24.5GHz | 2.92mm |
QBF-24000-26000-35 | 24~26 | 2 | 1.5 | 35@DC~23GHz | 35@27~40GHz | 2.92mm |
QBF-24000-27800-60 | 24~27.8 | 2 | 1.5 | 60@DC~22.4GHz | 60@30~40GHz | 2.92mm |
QBF-24000-29500-10 | 24~29.5 | 2 | 1.5 | 10@23GHz | 10@30.5GHz | 2.92mm |
QBF-24000-31000-40 | 24-31 | 1.5 | 1.5 | 40@23GHz | 40@32GHz | 2.92mm |
QBF-24000-33000-60 | 24~33 | 2 | 1.8 | 60@DC~21GHz | 60@37~40GHz | 2.92mm |
QBF-24100-24400-40 | 24.1-24.4 | 1 | 1.5 | 40@22GHz | 40@26.5GHz | SMA |
QBF-24250-25750-70 | 24.25-25.75 | 1 | 1.2 | 70@16.5GHz | 70@35GHz | 2.92mm |
QBF-24400-25600-35 | 24.4-25.6 | 2 | 1.5 | 35@24GHz | 35@26GHz | SMA |
QBF-24500-29500-70 | 24.5-29.5 | 1 | 1.5 | 70@19GHz | * | 2.92mm |
QBF-24700-25300-40 | 24.7-25.3 | 1.3 | 1.5 | 40@24GHz | 40@26GHz | 2.92mm |
QBF-24700-28300-50 | 24.7-28.3 | 1.5 | 1.5 | 65@23GHz | 50@29.2GHz | 2.92mm |
QBF-24800-29200-50 | 24.8-29.2 | 2 | 1.6 | 50@21GHz | * | 2.92mm |
QBF-25000-29000-40 | 25-29 | 1.5 | 2 | 40@23GHz | 40@32GHz | 2.92mm |
QBF-25200-25540-60 | 25.2-25.54 | 2 | 1.5 | 70@22.3GHz | 60@26.18GHz | 2.92mm |
QBF-25400-26600-35 | 25.4-26.6 | 2 | 1.5 | 35@25GHz | 35@27GHz | 2.92mm |
QBF-25500-29500-60 | 25.5~29.5 | 1.5 | 1.8 | 60@DC~23.5GHz | 60@31.5~40GHz | 2.92mm |
QBF-25500-30500-60 | 25.5-30.5 | 1 | 1.5 | 60@23.5GHz | 60@32.5GHz | 2.92mm |
QBF-25700-26300-40 | 25.7-26.3 | 1.3 | 1.5 | 40@25GHz | 40@27GHz | 2.92mm |
QBF-26000-27000-60 | 26~27 | 1 | 1.6 | 60@25GHz | 60@28GHz | 2.92mm |
QBF-26000-28000-60 | 26~28 | 2 | 1.5 | 60@DC~23GHz | 60@31~40GHz | 2.92mm |
QBF-26000-29000-60 | 26-29 | 1 | 1.8 | 60@23.27GHz | 60@32.89GHz | 2.92mm |
QBF-26300-29700-60 | 26.3~29.7 | 2 | 1.5 | 60@DC~24.8GHz | 60@32~40GHz | 2.92mm |
QBF-26400-27600-60 | 26.4-27.6 | 2 | 1.5 | 60@26GHz | 60@28GHz | 2.92mm |
QBF-26400-33000-60 | 26.4~33 | 2 | 1.8 | 60@DC~24GHz | 60@37~40GHz | 2.92mm |
QBF-26500-27500-60 | 26.5-27.5 | 2 | 1.5 | 60@25.5GHz | 60@28.5GHz | 2.92mm |
QBF-26500-40000-60 | 26.5-40 | 1.1 | 2 | 60@24.5GHz | * | 2.92mm |
QBF-26700-27300-40 | 26.7-27.3 | 1.3 | 1.5 | 40@26GHz | 40@28GHz | 2.92mm |
QBF-27100-30900-60 | 27.1-30.9 | 1.5 | 1.5 | 60@32.5GHz | * | 2.92mm |
QBF-27400-28600-35 | 27.4-28.6 | 2 | 1.5 | 35@27GHz | 35@29GHz | 2.92mm |
QBF-27400-28600-30 | 27.4-28.6 | 2 | 1.5 | 30@27GHz | 30@29GHz | 2.92mm |
QBF-27400-31100-35 | 27.4-31.1 | 2.5 | 1.5 | 35@27.1GHz | 35@32GHz | 2.92mm |
QBF-27485-31315-50 | 27.485-31.315 | 2 | 1.5 | 60@26GHz | 50@32.3GHz | 2.92mm |
QBF-27500-28500-60 | 27.5~28.5 | 1 | 1.6 | 60@26.6GHz | 60@29.5GHz | 2.92mm |
QBF-27500-31000-40 | 27.5-31 | 1.5 | 2 | 40@26.8GHz | 60@31.9GHz | 2.92mm |
QBF-27500-31000-50 | 27.5-31 | 1.7 | 2 | 50@26.6GHz | 50@32.6GHz | 2.92mm |
QBF-27500-32000-25 | 27.5-32 | 0.5 | 1.5 | 25@26.5GHz | 25@33GHz | 2.92mm |
QBF-27500-33000-50 | 27.5-33 | 1 | 2 | 50@24.79GHz | 50@37.28GHz | 2.92mm |
QBF-27700-28300-40 | 27.7-28.3 | 1.3 | 1.5 | 40@27GHz | 40@29GHz | 2.92mm |
QBF-28000-30000-50 | 28-30 | 1.5 | 1.5 | 50@31.5GHz | * | 2.92mm |
QBF-28000-33500-50 | 28-33.5 | 1.2 | 2 | 50@25.37GHz | 50@36.63GHz | 2.92mm |
QBF-28000-35000-85 | 28-35 | 1 | 1.5 | 85@24GHz | 85@39GHz | 2.92mm |
QBF-28000-40000-50 | 28-40 | 3 | 2 | 50@20GHz | 50@42GHz | 2.92mm |
QBF-28400-29600-35 | 28.4-29.6 | 2 | 1.5 | 35@28GHz | 35@30GHz | 2.92mm |
QBF-28500-31800-40 | 28.5-31.8 | 0.8 | 1.5 | 40@25.275GHz | 45@36.975GHz | 2.92mm |
QBF-28700-31800-40 | 28.7-31.8 | 0.6 | 1.2 | 40@25GHz | 40@36GHz | 2.92mm |
QBF-28700-29300-40 | 28.7-29.3 | 1.3 | 1.5 | 40@28GHz | 40@30GHz | 2.92mm |
QBF-28800-31200-60 | 28.8-31.2 | 1 | 1.5 | 60@26.3GHz | 60@35GHz | * |
QBF-28800-40000-70 | 28.8-40 | 1 | 1.5 | 70@25GHz | * | 2.92mm |
QBF-29000-35800-40 | 29-35.8 | 1.5 | 1.5 | 40@28GHz | 40@36.8GHz | 2.92mm |
QBF-29400-30600-35 | 29.4-30.6 | 2 | 1.5 | 35@29GHz | 35@31GHz | 2.92mm |
QBF-29400-31000-30 | 29.4-31 | 1 | 1.7 | 30@27GHz | 30@35GHz | 2.92mm |
QBF-29500-33500-60 | 29.5-33.5 | 1 | 1.5 | 60@27.5GHz | 60@35.5GHz | 2.92mm |
QBF-29700-30300-40 | 29.7-30.3 | 1.3 | 1.5 | 40@29GHz | 40@31GHz | 2.92mm |
QBF-30000-34000-60 | 30-34 | 1 | 1.5 | 60@26GHz | * | 2.92mm |
QBF-30200-30700-60 | 30.2-30.7 | 2.5 | 1.5 | 60@29.5GHz | 60@31.6GHz | * |
QBF-30400-31600-35 | 30.4-31.6 | 2 | 1.5 | 35@30GHz | 35@32GHz | 2.92mm |
QBF-30700-31300-40 | 30.7-31.3 | 1.3 | 1.5 | 40@30GHz | 40@32GHz | 2.92mm |
QBF-30750-31250-30 | 30.75-31.25 | 1 | 1.5 | 30@29.3GHz | 30@32.7GHz | 2.92mm |
QBF-31000-32000-47 | 31-32 | 2 | 2 | 47@28.5GHz | 50@34.84GHz | 2.92mm |
QBF-31000-33000-30 | 31-33 | 1 | 1.5 | 30@29GHz | 30@33GHz | 2.92mm |
QBF-31000-35500-50 | 31-35.5 | 1 | 1.5 | 60@29.7GHz | 50@36.8GHz | 2.92mm |
QBF-31000-40000-35 | 31-40 | 1 | 1.5 | 35@29GHz | 60@27GHz | 2.92mm |
QBF-31400-32600-35 | 31.4-32.6 | 2 | 1.5 | 35@31GHz | 35@33GHz | 2.92mm |
QBF-31700-32300-40 | 31.7-32.3 | 1.3 | 1.5 | 40@31GHz | 40@33GHz | 2.92mm |
QBF-31900-32100-50 | 31.9-32.1 | 1.5 | 1.5 | 50@30.2GHz | 50@33.8GHz | 2.92mm |
QBF-31980-32020-30 | 31.98-32.02 | 1.5 | 1.5 | 30@31.5GHz | 30@32.5GHz | 2.92mm |
QBF-32000-34000-30 | 32-34 | 1 | 1.5 | 30@31GHz | 30@35GHz | 2.92mm |
QBF-32500-33500-60 | 32.5~33.5 | 1 | 1.6 | 60@31.5GHz | 60@34.5GHz | 2.92mm |
QBF-32500-37500-50 | 32.5-37.5 | 2 | 1.5 | 50@30.5GHz | 50@39.5GHz | 2.92mm |
QBF-32750-33250-30 | 32.75-33.25 | 1 | 1.5 | 30@31.3GHz | 30@34.7GHz | 2.92mm |
QBF-33000-40000-85 | 33-40 | 1 | 1.5 | 85@30GHz | 85@43GHz | 2.92mm |
QBF-33500-37500-50 | 33.5-37.5 | 1 | 1.5 | 60@31.7GHz | 50@39.5GHz | 2.92mm |
QBF-33600-36400-33 | 33.6-36.4 | 1.3 | 1.5 | 50@31.7GHz | 33@39GHz | 2.92mm |
QBF-33700-33900-50 | 33.7-33.9 | 1.5 | 1.5 | 50@32GHz | 50@35.6GHz | 2.92mm |
QBF-33800-40000-40 | 33.8-40 | 1.5 | 1.5 | 40@32.8GHz | 40@42GHz | 2.92mm |
QBF-33980-34020-30 | 33.98-34.02 | 1.5 | 1.5 | 30@33.5GHz | 30@34.5GHz | 2.92mm |
QBF-34000-36000-30 | 34-36 | 1 | 1.5 | 30@33GHz | 30@37GHz | 2.92mm |
QBF-34000-36000-50 | 34-36 | 1 | 1.5 | 50@31GHz | 50@39GHz | 2.92mm |
QBF-34000-36000-30-1 | 34-36 | 3 | 1.5 | 30@33GHz | 50@42GHz | 2.92mm |
QBF-34000-38000-50 | 34-38 | 2 | 2 | 50@26GHz | 50@28GHz | 2.92mm |
QBF-35000-40000-50 | 35-40 | 1.5 | 1.3 | 50@30GHz | 50@45GHz | 2.92mm |
QBF-24750-35250-30 | 34.75-35.25 | 1 | 1.5 | 30@33.3GHz | 30@36.7GHz | 2.92mm |
QBF-35300-36100-25 | 35.3-36.1 | 3 | 1.5 | 43@34.6GHz | 25@36.9GHz | 2.92mm |
QBF-35500-40000-50 | 35.5-40 | 1 | 1.5 | 60@32.4GHz | 50@42GHz | 2.92mm |
QBF-35700-35900-50 | 35.7-35.9 | 1.5 | 1.5 | 50@34GHz | 50@37.6GHz | 2.92mm |
QBF-35705-38295-40 | 35.705-38.295 | 3.6 | 1.5 | 50@33.9GHz | 40@44GHz | 2.92mm |
QBF-35980-36020-30 | 35.98-36.02 | 1.5 | 1.5 | 30@35.5GHz | 30@36.5GHz | 2.92mm |
QBF-36000-38000-30 | 36-38 | 1 | 1.5 | 30@35GHz | 30@39GHz | 2.92mm |
QBF-36750-37250-30 | 36.75-37.25 | 1 | 1.5 | 30@35.3GHz | 30@38.7GHz | 2.92mm |
QBF-36800-40200-58 | 36.8~40.2 | 2 | 1.5 | 58@DC~35.2GHz | 58@42~67GHz | 2.92mm |
QBF-37900-38100-50 | 37.9-38.1 | 1.5 | 1.5 | 50@36.2GHz | 50@39.8GHz | 2.92mm |
QBF-37980-38020-30 | 37.98-38.02 | 1.5 | 1.5 | 30@37.5GHz | 30@38.5GHz | 2.92mm |
QBF-43000-46000-45 | 43-46 | 0.7 | 1.5 | 45@41.3GHz | * | * |
QBF-43500-45500-50 | 43.5-45.5 | 3 | 2 | 50@42.8GHz | 50@46.2GHz | 2.4mm |
QBF-43500-49500-20 | 43.5~49.5 | 1.5 | 1.6 | 20@41.5GHz | 20@51.5GHz | 2.4mm |
QBF-45000-55000-40 | 45-55 | 0.5 | 1.5 | 40@40GHz | 40@63GHz | WR-19 |
QBF-49950-50050-20 | 49.95-50.05 | 5 | – | 20@49.9GHz | 20@50.1GHz | 2.4mm |
QBF-51000-55000-30 | 51-55 | 0.8 | 1.8 | 30@46GHz | 30@60GHz | WR-15 |
QBF-57000-65000-40 | 57-65 | 2 | – | 40@54GHz | 40@68GHz | WR-15 |
QBF-57000-66000-40 | 57-66 | 0.7 | 1.8 | 40@47GHz | * | WR-15 |
QBF-58000-62000-35 | 58-62 | 1 | 1.5 | 35@55GHz | 35@65GHz | 1.85mm |
QBF-70000-80000-40 | 70-80 | 0.5 | 1.5 | 40@65GHz | 40@88GHz | WR-12 |
QBF-82000-92000-40 | 82-92 | 2 | – | 40@79GHz | 40@95GHz | WR-10 |
QBF-110000-120000-40 | 110-120 | 0.7 | 2 | 40@100GHz | 40@130GHz | WR-08 |
QBF-140000-170000-30 | 140-170 | 1 | 2 | 30@120GHz | * | WR-06 |
