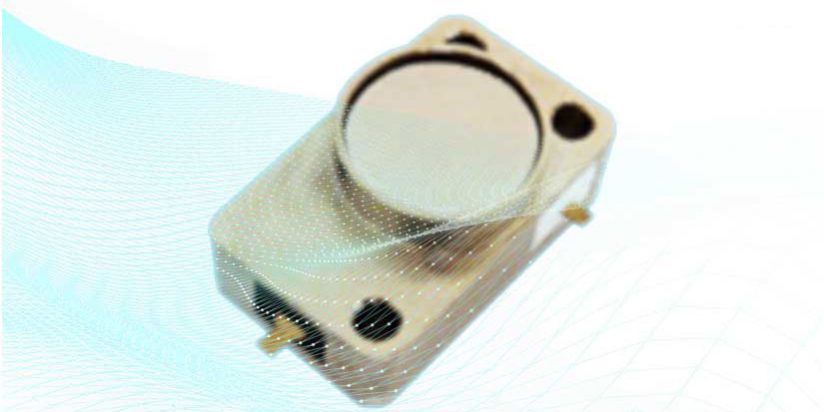

宽带高功率嵌入式环形器,频率范围10MHz~18GHz,平均功率高达500瓦。我们的嵌入式环形器广泛应用于多个领域。
型号 | 频率 | 带宽 | 插损 | 隔离度 | 驻波 | 平均功率 | 温度 | 尺寸 | 货期 |
(GHz) | (MHz,最大值) | (dB,最大值) | (dB,最小值) | (最大值) | (W,最大值) | (℃) | (mm) | (周) | |
FDC6060H | 0.02~0.4 | 175 | 2 | 18 | 1.3 | 100 | -10~+60 | 60*60*25.5 | 2~4 |
FDC6466H | 0.02~0.4 | 175 | 2 | 18 | 1.3 | 100 | -10~+60 | 64*66*22 | 2~4 |
FDC5050X | 0.15~0.33 | 70 | 0.7 | 18 | 1.3 | 400 | -30~+70 | 50.8*50.8*14.8 | 2~4 |
FDC4545X | 0.3~1 | 300 | 0.5 | 18 | 1.3 | 400 | -30~+70 | 45*45*13 | 2~4 |
FDC3538X | 0.3~1.85 | 500 | 0.7 | 18 | 1.35 | 300 | -30~+70 | 35*35*11 | 2~4 |
FDC3838X | 0.3~1.85 | 106 | 0.4 | 20 | 1.25 | 300 | -30~+70 | 38*38*11 | 2~4 |
FDC2525X | 0.35~4 | 770 | 0.65 | 15 | 1.45 | 250 | -30~+70 | 25.4*25.4*10 | 2~4 |
FDC2020X | 0.6~4 | 900 | 0.5 | 18 | 1.35 | 100 | -30~+70 | 20*20*8.6 | 2~4 |
FDC1919X | 0.8~4.3 | 900 | 0.5 | 18 | 1.35 | 100 | -30~+70 | 19*19*8.6 | 2~4 |
FDC6466K | 0.95~2 | 1050 | 0.7 | 16 | 1.4 | 100 | -10~+60 | 64*66*26 | 2~4 |
FDC1313T | 1.2~6 | 800 | 0.45 | 18 | 1.3 | 100 | -30~+70 | 12.7*12.7*7.2 | 2~4 |
FDC5050A | 1.5~3 | 1500 | 0.7 | 17 | 1.4 | 100 | 0~+60 | 50.8*49.5*19 | 2~4 |
FDC4040A | 1.7~3 | 1200 | 0.7 | 16 | 1.35 | 200 | 0~+60 | 40*40*20 | 2~4 |
FDC1313M | 1.7~6 | 800 | 0.45 | 18 | 1.3 | 100 | -30~+70 | 12.7*12.7*7.2 | 2~4 |
FDC2528C | 2.7~6 | 3500 | 0.8 | 16 | 1.4 | 200 | -30~+70 | 25.4*28*14 | 2~4 |
FDC3234A | 2~4 | 2000 | 0.6 | 16 | 1.35 | 100 | 0~+60 | 32*34*21 | 2~4 |
FDC1822D | 4~5 | 1000 | 0.4 | 18 | 1.35 | 60 | -30~+70 | 18*22*10.4 | 2~4 |
FDC2123B | 4~8 | 4000 | 0.6 | 18 | 1.35 | 60 | 0~+60 | 21*22.5*15 | 2~4 |
FDC1220D | 5~6.5 | 800 | 0.5 | 18 | 1.3 | 60 | -30~+70 | 12*20*9.5 | 2~4 |
FDC1623D | 5~6.5 | 800 | 0.5 | 18 | 1.3 | 50 | -30~+70 | 16*23*9.7 | 2~4 |
FDC1319C | 6~12 | 4000 | 0.5 | 18 | 1.3 | 50 | 0~+60 | 13*19*12.7 | 2~4 |
FDC0915D | 7~18 | 6000 | 0.6 | 17 | 1.35 | 30 | -30~+70 | 8.9*15*7.8 | 2~4 |
