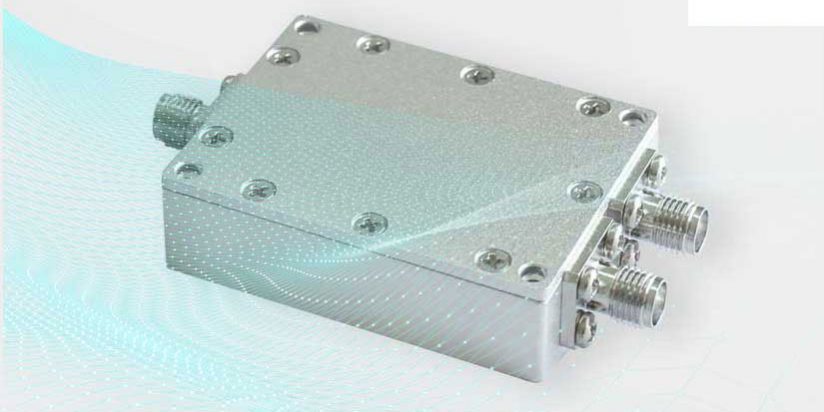

DC～67GHz的2路功分器/合成器，功率高达600W。我们的2路功分器/合成器广泛应用于许多领域。

型号 频率 功率 插损 隔离度 幅度平衡 相位平衡 驻波 连接器 货期
（GHz） （W） （dB，最大值） （dB，最小值） （±dB，最大值） （±°，最大值） （最大值） （周）
FDD2-0-2000-2-S DC~2 2 6.0±0.5 6 ±0.5 – 1.2 SMA 2~3
FDD2-0-2400-2-S DC~2.4 2 6.0±0.5 6 0.5 – 1.2 SMA 2~3
FDD2-0-3000 DC~3 2 6.8 5.6 0.3 ±3 1.2 SMA, N 2~3
FDD2-0-4000-2-S DC~4 2 6.8 5.6 0.3 ±3 1.2 SMA 2~3
FDD2-0-6000 DC~6 2 6.8 5.6 0.3 ±3 1.3 SMA, N 2~3
FDD2-0-8000 DC~8 2 7.2±0.5 6 ±0.5 – 1.4 SMA 2~3
FDD2-0-10000 DC~10 0.5 6.0±1.5 – ±0.8 – 1.5 SMA 2~3
FDD2-0-12400-R5-S DC~12.4 0.5 6±1.5 – ±0.8 – 1.5 SMA 2~3
FDD2-0-18000-R5-S DC~18 0.5 6±1.5 – ±0.8 – 1.6 SMA 2~3
FDD2-0-26500-2-S DC~26.5 2 7.5 8 ±0.4 ±3 2.5 SMA 2~3
FDD2-0-40000-2-K DC~40 1 7.5 9 ±0.5 ±5 2.5 2.92mm 2~3
FDD2-0-50000-1-2 DC~50 1 7.8 9 ±0.8 ±8 2.5 2.4mm 2~3
FDD2-0-67000-1-V DC~67 1 8 9 ±0.9 ±10 2.5 1.85mm 2~3
FDD2-2-500-1-S 0.002~0.5 1 0.6 120 ±0.3 ±2 1.3 SMA 2~3
FDD2-5-1000 0.005~1 1 1 17 0.3 ±3 1.3 SMA, N, BNC 2~3
FDD2-10-1000-1-S 0.01~1 1 1 20 0.3 ±3 1.3 SMA 2~3
FDD2-30-300-2-N 0.03~0.3 2 6.8 5.6 0.3 ±3 1.2 N 2~3
FDD2-30-400-20-S 0.03~0.4 20 1.8 20 0.2 ±2 1.2 SMA 2~3
FDD2-30-512 0.03~0.512 300 1.4 20 0.2 ±2 1.25 N 2~3
FDD2-30-512-S 0.03~0.512 30 2.8 20 0.3 ±3 1.25 SMA 2~3
FDD2-30-1000-20-S 0.03~1 20 3 18 0.3 ±3 1.4 SMA 2~3
FDD2-30-3000-2-N 0.03~3 2 6.8 5.6 0.3 – 1.2 N 2~3
FDD2-30-3000-2-S 0.03~3 2 6.8 5.6 0.3 – 1.2 SMA 2~3
FDD2-50-500 0.05~0.5 1 0.6 18 0.3 ±3 1.3 SMA, N 2~3
FDD2-52-57 0.052~0.057 600 0.3 20 0.2 ±2 1.25 N 2~3
FDD2-68-72-1-N 0.068~0.072 1 0.3 20 0.2 ±2 1.2 N 2~3
FDD2-68-72-30-N 0.068~0.072 30 0.4 20 0.2 ±2 1.2 N 2~3
FDD2-68-72-K2-N 0.068~0.072 200 0.3 20 0.2 ±2 1.2 N 2~3
FDD2-70-2700-K1-N 0.07~2.7 100 2 20 0.2 ±3 1.5 N 2~3
FDD2-70-4200-20-S 0.07~4.2 20 5 18 0.3 ±3 1.5 SMA 2~3
FDD2-80-110-30-S 0.08~0.11 30 0.4 20 0.2 ±2 1.2 SMA 2~3
FDD2-80-500-30-S 0.08~0.5 30 0.8 19 0.2 ±2 1.25 SMA 2~3
FDD2-80-2000 0.08~2 30 1.8 19 0.2 ±2 1.25 SMA, N 2~3
FDD2-80-4000-30-S 0.08~4 30 2.5 16 0.3 ±3 1.5 SMA 2~3
FDD2-100-200-K1-N 0.1~0.2 100 0.3 20 0.2 ±2 1.2 N 2~3
FDD2-100-350-30-S 0.1~0.35 30 1 20 ±0.2 ±2 1.25 SMA 2~3
FDD2-100-400 0.1~0.4 30 1 22 0.2 ±2 1.2 N 2~3
FDD2-100-400-K2-N 0.1~0.4 200 0.4 20 0.2 ±2 1.2 N 2~3
FDD2-100-500 0.1~0.5 50 0.5 20 0.2 ±3 1.25 SMA 2~3
FDD2-100-500-50-N 0.1~0.5 50 0.5 20 0.2 ±2 1.25 N 2~3
FDD2-100-500-K3-N 0.1~0.5 300 0.5 20 0.2 ±2 1.25 N 2~3
FDD2-100-500-K4-7 0.1~0.5 400 0.6 20 0.2 ±2 1.25 7/16DIN 2~3
FDD2-100-512 0.1~0.512 30 0.7 23 0.2 ±2 1.3 N 2~3
FDD2-100-550-K1-N 0.1~0.55 100 0.5 20 0.2 ±2 1.2 N 2~3
FDD2-100-600 0.1~0.6 30 0.8 20 0.2 ±2 1.2 SMA 2~3
FDD2-100-1000-30-S 0.1~1 30 1.2 20 0.2 ±2 1.2 SMA 2~3
FDD2-100-3000-30-S 0.1~3 30 2.5 18 0.3 ±3 1..3 SMA 2~3
FDD2-100-4000-30-S 0.1~4 30 2 16 0.3 ±3 1.4 SMA 2~3
FDD2-134-3700 0.134~3.7 30 2.2 18 0.3 ±3 1.3 N 2~3
FDD2-136-174-K3-N 0.136~0.174 300 0.3 20 0.2 ±2 1.2 N 2~3
FDD2-138-960-50-N 0.138~0.96 50 0.6 18 ±0.2 ±3 1.25 N 2~3
FDD2-150-980 0.15~0.98 50 0.6 20 0.3 ±3 1.3 N 2~3
FDD2-200-1000 0.2~1 30 0.6 20 0.2 ±2 1.25 SMA 2~3
FDD2-200-2000 0.2~2 30 0.8 20 0.2 ±3 1.25 SMA 2~3
FDD2-200-6000 0.2~6 30 2.2 18 0.3 ±3 1.25 SMA, N 2~3
FDD2-200-6000-50-S 0.2~6 50 6 18 0.2 ±3 1.4 SMA 2~3
FDD2-210-240 0.21~0.24 50 0.3 20 0.2 ±2 1.2 N 2~3
FDD2-225-512-K1-N 0.225~0.512 100 0.3 20 0.2 ±2 1.2 N 2~3
FDD2-300-500 0.3~0.5 50 0.3 20 0.2 ±2 1.2 SMA 2~3
FDD2-300-600 0.3~0.6 50 0.3 20 0.2 ±2 1.2 N 2~3
FDD2-300-900 0.3~0.9 30 0.6 20 0.2 ±2 1.2 SMA 2~3
FDD2-300-1000 0.3~1 300 0.3 20 0.2 ±2 1.25 N 2~3
FDD2-300-1800-K3-N 0.3~1.8 300 0.6 18 0.2 ±2 1.3 N 2~3
FDD2-300-2000-N 0.3~2 50 0.8 18 0.2 ±3 1.3 N 2~3
FDD2-336-366 0.336~0.366 30 0.3 20 0.2 ±2 1.25 N 2~3
FDD2-350-520-K15-N 0.35~0.52 150 0.3 20 0.2 ±2 1.2 N 2~3
FDD2-350-3800 0.35~3.8 30 1.2 20 0.2 ±3 1.25 SMA, N 2~3
FDD2-350-6000-30-S 0.35~6 30 1.5 20 0.3 ±3 1.25 SMA 2~3
FDD2-380-410-K3-N 0.38~0.41 300 0.3 20 0.2 ±2 1.2 N 2~3
FDD2-380-460 0.38~0.46 100 0.3 20 0.2 ±2 1.2 7/16DIN 2~3
FDD2-380-470-K3-N 0.38~0.47 300 0.3 20 0.2 ±2 1.2 N 2~3
FDD2-400-450-K1 0.4~0.45 50 0.2 20 0.2 ±2 1.2 N 2~3
FDD2-400-470-30-S 0.4~0.47 30 0.5 20 0.2 ±2 1.2 SMA 2~3
FDD2-400-1000-K2-N 0.4~1 200 0.4 18 0.2 ±2 1.25 N 2~3
FDD2-400-1000-K3-N 0.4~1 300 0.4 18 0.2 ±2 1.25 N 2~3
FDD2-400-2700-30-S 0.4~2.7 30 0.8 20 0.2 ±3 1.2 SMA 2~3
FDD2-400-6000 0.4~6 30 1.4 20 0.2 ±3 1.3 SMA, N 2~3
FDD2-400-8000 0.4~8 30 1.5 18 0.3 ±3 1.3 SMA 2~3
FDD2-400-18000 0.4~18 20 1.2 12 0.3 ±5 1.7 SMA 2~3
FDD2-430-950-30-S 0.43~0.95 30 0.3 22 0.2 ±2 1.2 SMA 2~3
FDD2-500-1000 0.5~1 30 0.4 20 0.2 ±2 1.2 SMA, N 2~3
FDD2-500-2000-20-S 0.5~2 20 0.5 20 0.2 2 1.3 SMA 2~3
FDD2-500-3000 0.5~3 30 0.6 20 0.2 ±3 1.25 SMA, N 2~3
FDD2-500-4000 0.5~4 30 0.8 20 0.2 ±3 1.25 SMA 2~3
FDD2-500-6000 0.5~6 30 1.2 20 0.2 ±3 1.25 SMA, N 2~3
FDD2-500-8000 0.5~8 30 1.8 20 0.2 ±3 1.25 SMA, N 2~3
FDD2-500-18000 0.5~18 20 1.5 16 0.3 ±5 1.6 SMA, N 2~3
FDD2-555-3400-30-N 0.555~3.4 30 0.6 20 ±0.2 ±2 1.2 N 2~3
FDD2-600-2000 0.6~2 30 0.4 20 0.2 ±3 1.2 SMA 2~3
FDD2-600-6000 0.6~6 30 1 20 0.2 ±3 1.25 SMA, N 2~3
FDD2-698-4000-50-4 0.698~4 50 0.8 20 0.2 ±3 1.3 4.3/10 2~3
FDD2-700-2700-30-S 0.7~2.7 30 0.5 20 0.2 ±2 1.2 SMA 2~3
FDD2-700-2700-K2 0.7~2.7 200 0.5 20 ±0.2 ±3 1.25 N 2~3
FDD2-700-4000 0.7~4 30 0.6 20 ±0.2 ±3 1.25 SMA, N 2~3
FDD2-700-4700 0.7~4.7 30 1 20 0.2 ±3 1.25 N 2~3
FDD2-700-5000 0.7~5 30 1 18 0.2 4 1.3 N 2~3
FDD2-700-6000-30-S 0.7~6 30 1 20 0.2 ±3 1.25 SMA 2~3
FDD2-700-8000-K1-N 0.7~8 100 1.5 18 ±0.2 ±3 1.35 N 2~3
FDD2-700-9000-20-S 0.7~9 20 1.2 18 0.2 ±3 1.25 SMA 2~3
FDD2-800-1880 0.8~1.88 200 0.3 25 0.2 2 1.25 N 2~3
FDD2-800-2500 0.8~2.5 200 0.3 20 0.2 3 1.25 N, 7/16DIN 2~3
FDD2-800-2500-S 0.8~2.5 30 0.5 20 0.2 ±2 1.2 SMA 2~3
FDD2-800-2700-30-S 0.8~2.7 30 0.5 22 0.2 ±3 1.2 SMA 2~3
FDD2-800-2700-50-N 0.8~2.7 50 0.5 20 0.2 ±3 1.25 N 2~3
FDD2-800-3000 0.8~3 30 0.6 20 0.2 3 1.25 SMA, N 2~3
FDD2-800-3800 0.8~3.8 200 0.9 20 ±0.2 ±3 1.3 7/16DIN 2~3
FDD2-800-4000 0.8~4 30 0.8 22 0.2 3 1.2 SMA 2~3
FDD2-950-2150-DC 0.95~2.15 30 0.3 20 0.2 ±2 1.2 SMA, N 2~3
FDD2-1000-2000 1~2 30 0.35 20 0.2 ±2 1.2 SMA, N 2~3
FDD2-1000-2500-30-N 1~2.5 30 0.4 20 0.2 ±2 1.2 N 2~3
FDD2-1000-3000-30-S 1~3 30 0.5 20 0.2 ±3 1.2 SMA 2~3
FDD2-1000-4000-30-S 1~4 30 0.4 20 0.2 ±2 1.2 SMA 2~3
FDD2-1000-4000-K2-N 1~4 200 1.2 16 0.3 ±4 1.5 N 2~3
FDD2-1000-8000-30-S 1~8 30 0.8 20 0.2 ±3 1.25 SMA 2~3
FDD2-1000-9000 1~9 30 1.5 20 0.2 ±3 1.25 SMA, N 2~3
FDD2-1000-12000-20-S 1~12 20 1 18 0.3 ±4 1.4 SMA 2~3
FDD2-1000-18000-20-S 1~18 20 1.2 16 0.3 ±3 1.4 SMA 2~3
FDD2-1000-26500 1~26.5 20 1.2 16 ±0.5 ±6 1.7 SMA, 2.92mm 2~3
FDD2-1000-40000-20-K 1~40 20 2.2 15 ±0.5 ±8 2 2.92mm 2~3
FDD2-1100-1700 1.1~1.7 30 0.4 20 0.2 ±2 1.2 SMA, BNC 2~3
FDD2-1300-2400 1.3~2.4 30 0.4 22 0.2 ±2 1.2 SMA 2~3
FDD2-1350-1450-20-S 1.35~1.45 20 0.3 30 0.2 ±2 1.2 SMA 2~3
FDD2-1500-18000-20-S 1.5~18 20 1.2 16 0.3 ±3 1.4 SMA 2~3
FDD2-1700-5900-30-N 1.7~5.9 30 0.5 22 0.2 ±3 1.2 N 2~3
FDD2-1700-6000-50-S 1.7~6 50 0.5 18 ±0.2 ±2 1.4 SMA 2~3
FDD2-1700-9000-30-S 1.7~9 30 0.6 18 0.2 ±3 1.3 SMA 2~3
FDD2-2000-2300-K1-S 2~2.3 100 0.4 20 ±0.2 ±2 1.25 SMA 2~3
FDD2-2000-2400-30-N 2~2.4 30 0.3 20 0.2 ±2 1.25 N 2~3
FDD2-2000-4000 2~4 30 0.5 20 0.2 ±2 1.25 SMA, N 2~3
FDD2-2000-4000-125-N 2~4 125 0.3 20 0.2 ±3 1.2 N 2~3
FDD2-2000-4000-K3-N 2~4 300 0.5 18 0.2 ±2 1.3 N 2~3
FDD2-2000-6000 2~6 30 0.6 20 0.2 ±3 1.25 SMA, N 2~3
FDD2-2000-8000 2~8 30 0.8 18 0.2 ±3 1.3 SMA, N 2~3
FDD2-2000-9000-30-S 2~9 30 0.6 20 0.2 ±3 1.25 SMA 2~3
FDD2-2000-12000-20-S 2~12 20 1 18 0.3 ±4 1.4 SMA 2~3
FDD2-2000-18000-20-S 2~18 20 1 18 0.3 ±4 1.4 SMA 2~3
FDD2-2000-40000-20-K 2~40 20 1.8 16 0.4 ±6 1.8 2.92mm 2~3
FDD2-2400-2500-K3-S 2.4~2.5 300 0.3 30 0.2 ±2 1.25 SMA 2~3
FDD2-2400-2500-K2-S 2.4~2.5 200 0.3 30 0.2 ±2 1.25 SMA 2~3
FDD2-2500-4000-K2-N 2.5~4 200 0.6 18 0.2 ±3 1.35 N 2~3
FDD2-3000-6000-30-S 3~6 30 0.4 22 0.2 ±2 1.2 SMA 2~3
FDD2-3000-8000-30-S 3~8 30 0.6 22 0.1 ±1 1.2 SMA 2~3
FDD2-3000-13000-5-S 3~13 5 1.2 18 ±0.3 ±5 1.5 SMA 2~3
FDD2-3400-3800-30-N 3.4~3.8 30 0.3 20 ±0.2 ±2 1.2 N 2~3
FDD2-3400-3800-K1-N 3.4~3.8 100 0.3 20 ±0.2 ±2 1.2 N 2~3
FDD2-4000-5000-30-S 4~5 30 0.4 22 0.2 ±2 1.25 SMA 2~3
FDD2-4000-6000 4~6 30 0.4 20 0.2 ±2 1.2 SMA 2~3
FDD2-4000-8000 4~8 30 0.5 20 0.2 ±2 1.25 SMA, N 2~3
FDD2-4000-12000-20-S 4~12 20 0.8 18 ±0.2 ±3 1.25 SMA 2~3
FDD2-4900-5900 4.9~5.9 30 0.4 20 0.2 ±2 1.25 SMA 2~3
FDD2-5000-6000-K2-N-IP65 5~6 200 0.5 20 0.2 ±3 1.25 N 2~3
FDD2-5000-12000-20-S 5~12 30 0.6 18 0.3 ±3 1.25 SMA 2~3
FDD2-5150-5850-50-N 5.15~5.85 50 0.5 20 0.2 ±3 1.25 N 2~3
FDD2-5150-5850-K2-N 5.15~5.85 200 0.6 20 0.2 ±3 1.25 N 2~3
FDD2-5200-5900-K1-S 5.2~5.9 100 0.4 20 0.2 ±2 1.25 SMA 2~3
FDD2-6000-18000-20-S 6~18 20 0.8 18 0.3 ±4 1.4 SMA 2~3
FDD2-6000-18000-K1-S 6~18 100 1 15 ±0.3 ±4 1.5 SMA 2~3
FDD2-6000-40000-20-K 6~40 20 1.4 16 0.5 ±5 1.7 2.92mm 2~3
FDD2-7000-8500-30-S 7~8.5 30 0.3 20 0.2 ±2 1.25 SMA 2~3
FDD2-7000-8500-30-S 7~8.5 30 0.4 20 0.2 ±2 1.25 SMA 2~3
FDD2-7000-9000-30-S 7~9 30 0.3 20 0.2 ±2 1.25 SMA 2~3
FDD2-8000-12000-20-S 8~12 20 0.5 20 0.2 ±3 1.25 SMA 2~3
FDD2-8000-30000-20-K 8~30 20 1.2 16 ±0.4 ±4 1.5 2.92mm 2~3
FDD2-10000-43000-20-K 10~43 20 1.3 12 0.4 ±5 1.6 2.92mm 2~3
FDD2-10000-43300-20-K 10~43.3 20 1.6 14 0.5 ±6 1.6 2.92mm 2~3
FDD2-10700-12750-20-S 10.7~12.75 20 0.6 18 0.3 ±3 1.3 SMA 2~3
FDD2-13500-15000-20-S 13.5~15 20 0.4 18 0.2 ±3 1.25 SMA 2~3
FDD2-13500-15000-20-N 13.5~15 20 0.4 18 ±0.2 ±3 1.25 N 2~3
FDD2-17000-31000-20-K 17~31 20 1 16 0.4 ±5 1.5 2.92mm 2~3
FDD2-18000-26500-20-K 18~26.5 20 0.6 16 0.4 ±4 1.5 2.92mm 2~3
FDD2-18000-40000-20-K 18~40 20 1 16 0.4 ±5 1.5 2.92mm 2~3
FDD2-20000-22000-20-K 20~22 20 1 18 ±0.4 ±4 1.4 2.92mm 2~3
FDD2-20000-40000-20-K 20~40 20 1.2 16 ±0.4 ±5 1.5 2.92mm 2~3
FDD2-23100-23300-10-K 23.1~23.3 10 0.8 18 ±0.3 ±3 1.5 2.92mm 2~3
FDD2-24000-43500-20-K 24~43.5 20 1.3 16 ±0.4 ±5 1.7 2.92mm 2~3
FDD2-24250-52600-20-V 24.25~52.6 20 1.5 17 ±0.5 ±5 1.7 1.85mm 2~3
FDD2-25500-25600-1-K 25.5~25.6 1 0.8 18 ±0.3 ±3 1.5 2.92mm 2~3
FDD2-26000-31000-20-K 26~31 20 1 16 0.4 ±4 1.5 2.92mm 2~3
FDD2-26000-40000-20-K 26~40 20 1.2 16 ±0.4 ±4 1.5 2.92mm 2~3
FDD2-27000-52000-10-2 27~52 10 1.8 14 ±0.6 ±6 1.8 2.4mm 2~3
