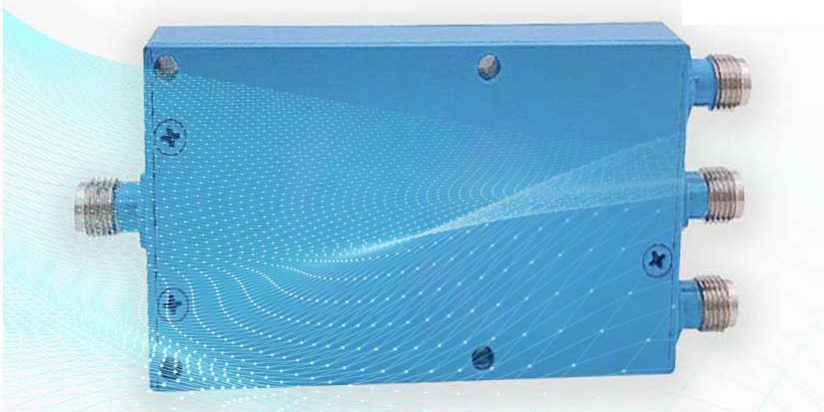

DC～40GHz的3路功分器/合并器，功率高达300W。
| 型号 | 频率 | 功率 | 插损 | 隔离度 | 幅度平衡 | 相位平衡 | 驻波 | 连接器 | 货期 |
| （GHz） | （W） | （dB，最大值） | （dB，最小值） | （dB，最大值） | （°，最大值） | （最大值） | （周） | ||
| FDD3-0-3000-2-S | DC~3 | 2 | 9.5±0.6 | 9.5 | ±0.6 | – | 1.25 | SMA | 2~3 |
| FDD3-0-6000-2-S | DC~6 | 2 | 11 | 9 | ±0.7 | ±10 | 1.4 | SMA | 2~3 |
| FDD3-10-500-1-S | 0.01~0.5 | 1 | 1.4 | 16 | 0.6 | ±6 | 1.6 | SMA | 2~3 |
| FDD3-80-300-20-S | 0.08~0.3 | 20 | 1 | 18 | 0.4 | ±5 | 1.3 | SMA | 2~3 |
| FDD3-100-200-K1-N | 0.1~0.2 | 100 | 0.5 | 18 | ±0.3 | ±3 | 1.25 | N | 2~3 |
| FDD3-100-350-30-S | 0.1~0.35 | 30 | 0.8 | 20 | ±0.4 | ±4 | 1.25 | SMA | 2~3 |
| FDD3-100-400 | 0.1~0.4 | 30 | 0.6 | 18 | 0.5 | ±5 | 1.3 | N | 2~3 |
| FDD3-100-400-50 | 0.1~0.4 | 50 | 0.6 | 18 | 0.6 | ±5 | 1.3 | N | 2~3 |
| FDD3-100-1000-30-S | 0.1~1 | 30 | 1.8 | 18 | 0.8 | ±8 | 1.35 | SMA | 2~3 |
| FDD3-114-178 | 0.114~0.178 | 300 | 1 | 20 | 0.5 | ±6 | 1.3 | N | 2~3 |
| FDD3-134-3700 | 0.134~3.7 | 30 | 3.8 | 18 | 0.9 | ±10 | 1.5 | N | 2~3 |
| FDD3-136-174-K3-N | 0.136~0.174 | 300 | 0.8 | 20 | ±0.3 | ±3 | 1.25 | N | 2~3 |
| FDD3-138-960-50-N | 0.138~0.96 | 50 | 1.2 | 18 | ±0.6 | ±6 | 1.3 | N | 2~3 |
| FDD3-200-250-30-S | 0.2~0.25 | 30 | 1 | 20 | 0.4 | ±4 | 1.25 | SMA | 2~3 |
| FDD3-200-2000 | 0.2~2 | 30 | 1.8 | 20 | 0.8 | ±8 | 1.3 | SMA | 2~3 |
| FDD3-225-2500-20-S | 0.225~2.5 | 20 | 1.8 | 20 | 0.8 | ±8 | 1.4 | SMA | 2~3 |
| FDD3-336-366 | 0.336~0.366 | 30 | 0.6 | 20 | 0.3 | ±3 | 1.25 | N | 2~3 |
| FDD3-380-470-K3-N | 0.38~0.47 | 300 | 0.8 | 20 | ±0.3 | ±3 | 1.25 | N | 2~3 |
| FDD3-380-40000 | 0.38~40 | 20 | 4.5 | 17 | ±0.9 | ±10 | 1.7 | 2.92mm | 2~3 |
| FDD3-400-1000-30-S | 0.4~1 | 30 | 0.6 | 20 | 0.4 | ±5 | 1.3 | SMA | 2~3 |
| FDD3-400-6000 | 0.4~6 | 20 | 2.8 | 18 | 0.8 | ±8 | 1.5 | SMA, N | 2~3 |
| FDD3-433-30-N | 0.433 | 30 | 0.5 | 22 | 0.3 | ±3 | 1.2 | N | 2~3 |
| FDD3-440-900-60-N | 0.44~0.9 | 60 | 0.8 | 18 | 0.4 | ±6 | 1.35 | N | 2~3 |
| FDD3-480-500-30-N | 0.48~0.5 | 30 | 0.3 | 20 | ±0.3 | ±3 | 1.2 | N | 2~3 |
| FDD3-480-500-50-N | 0.48~0.5 | 50 | 0.3 | 20 | ±0.3 | ±3 | 1.2 | N | 2~3 |
| FDD3-500-700 | 0.5~0.7 | 150 | 0.6 | 18 | 0.5 | ±6 | 1.3 | SMA | 2~3 |
| FDD3-500-3000 | 0.5~3 | 30 | 1 | 18 | 0.5 | ±5 | 1.3 | SMA | 2~3 |
| FDD3-500-6000 | 0.5~6 | 30 | 2.8 | 18 | 0.8 | ±8 | 1.5 | SMA, N | 2~3 |
| FDD3-500-8000-20-S | 0.5~8 | 20 | 2.2 | 17 | 1 | ±10 | 1.5 | SMA | 2~3 |
| FDD3-555-3400-30-N | 0.555~3.4 | 30 | 1 | 20 | ±0.7 | ±7 | 1.25 | N | 2~3 |
| FDD3-600-6000 | 0.6~6 | 30 | 2.8 | 20 | ±0.8 | ±8 | 1.5 | SMA, N | 2~3 |
| FDD3-698-2700 | 0.698~2.7 | 50 | 0.6 | 20 | ±0.4 | ±4 | 1.25 | N | 2~3 |
| FDD3-698-6000-30-N | 0.698~6 | 30 | 2 | 18 | 0.8 | ±8 | 1.5 | N | 2~3 |
| FDD3-700-1100 | 0.7~1.1 | 10 | 1 | 20 | ±0.6 | – | 1.35 | SMA | 2~3 |
| FDD3-700-4000 | 0.7~4 | 30 | 1.4 | 20 | ±0.5 | ±5 | 1.3 | SMA, N | 2~3 |
| FDD3-700-5000 | 0.7~5 | 30 | 1.5 | 18 | ±0.8 | ±8 | 1.4 | N | 2~3 |
| FDD3-800-2500 | 0.8~2.5 | 200 | 0.5 | 20 | 0.3 | 4 | 1.2 | N, 7/16DIN | 2~3 |
| FDD3-1000-3000-30-N | 1~3 | 30 | 1.2 | 20 | ±0.5 | ±5 | 1.3 | N | 2~3 |
| FDD3-1100-1700 | 1.1~1.7 | 30 | 0.5 | 20 | 0.4 | ±4 | 1.25 | SMA, TNC | 2~3 |
| FDD3-2000-3000-20-S | 2~3 | 20 | 0.5 | 18 | 0.5 | ±5 | 1.3 | SMA | 2~3 |
| FDD3-2000-4000-20-S | 2~4 | 20 | 0.5 | 18 | 0.5 | ±5 | 1.3 | SMA | 2~3 |
| FDD3-2000-8000 | 2~8 | 20 | 1.2 | 18 | 0.5 | ±6 | 1.4 | SMA, N | 2~3 |
| FDD3-2000-9000-30-S | 2~9 | 30 | 1.5 | 18 | ±0.5 | ±5 | 1.5 | SMA | 2~3 |
| FDD3-2000-18000-20-S | 2~18 | 20 | 1.6 | 16 | 0.6 | ±10 | 1.7 | SMA | 2~3 |
| FDD3-3400-3800-30-N | 3.4~3.8 | 30 | 0.5 | 20 | ±0.5 | ±5 | 1.25 | N | 2~3 |
| FDD3-6000-18000-20-S | 6~18 | 20 | 1.2 | 18 | 0.6 | ±6 | 1.5 | SMA | 2~3 |
| FDD3-7000-8000-20-S | 7~8 | 20 | 1 | 20 | 0.4 | ±4 | 1.3 | SMA | 2~3 |
| FDD3-8000-12000-20-S | 8~12 | 20 | 1 | 18 | 0.5 | ±5 | 1.4 | SMA | 2~3 |
| FDD3-9000-11000-20-S | 9~11 | 20 | 0.8 | 18 | 0.5 | ±5 | 1.4 | SMA | 2~3 |
| FDD3-16000-18000-20-S | 16~18 | 20 | 0.8 | 18 | 0.5 | ±5 | 1.4 | SMA | 2~3 |
| FDD3-26000-31000-20-K | 26~31 | 20 | 1.5 | 16 | 0.6 | ±6 | 1.5 | 2.92mm | 2~3 |
