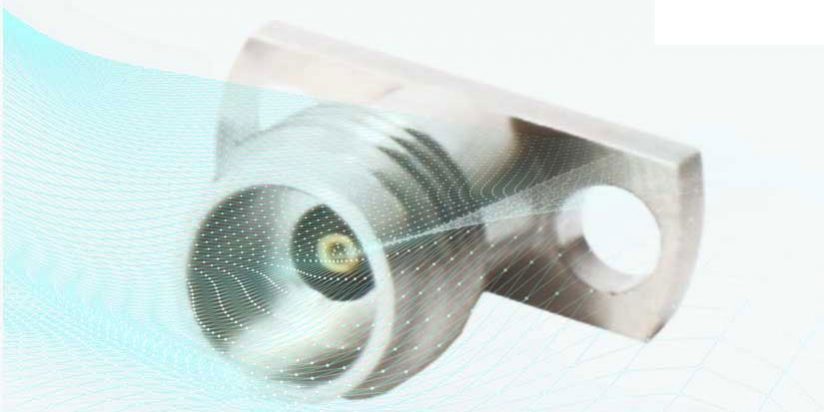

PCB连接器，以满足不同的要求。频率范围覆盖DC~67GHz，接头主要包括1.85mm、2.4mm、2.92mm、SSMA、SMA、N、TNC等接头.
| 可拆卸式连接器 | |||||
| 型号 | 频率（GHz） | 驻波（最大值） | PIN（Φmm) | 连接器 | 货期（周） |
| FDV-FL2G-S-01 | DC~67 | 1.25 | 0.23, 0.3 | 1.85mm母头 | 0~4 |
| FDV-FL2G-S-02 | DC~67 | 1.25 | 0.23, 0.3 | 1.85mm母头 | 0~4 |
| FDV-FL4G-S-01 | DC~67 | 1.25 | 0.23, 0.3 | 1.85mm母头 | 0~4 |
| FDV-FL4G-S-02 | DC~67 | 1.25 | 0.23, 0.3 | 1.85mm母头 | 0~4 |
| FDV-FYG-S-01 | DC~67 | 1.25 | 0.23, 0.3 | 1.85mm母头 | 0~4 |
| FDV-FYG-S-02 | DC~67 | 1.25 | 0.23, 0.3 | 1.85mm母头 | 0~4 |
| FDV-ML2G-S-01 | DC~67 | 1.25 | 0.23, 0.3 | 1.85mm公头 | 0~4 |
| FDV-ML2G-S-02 | DC~67 | 1.25 | 0.23, 0.3 | 1.85mm公头 | 0~4 |
| FDV-ML4G-S-01 | DC~67 | 1.25 | 0.23, 0.3 | 1.85mm公头 | 0~4 |
| FDV-ML4G-S-02 | DC~67 | 1.25 | 0.23, 0.3 | 1.85mm公头 | 0~4 |
| FD2-FL2G-S-01 | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 2.4mm母头 | 0~4 |
| FD2-FL2G-S-02 | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 2.4mm母头 | 0~4 |
| FD2-FL2G-S-03 | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 2.4mm母头 | 0~4 |
| FD2-FL2G-S-04 | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 2.4mm母头 | 0~4 |
| FD2-FL4G-S-01 | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 2.4mm母头 | 0~4 |
| FD2-FL4G-S-02 | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 2.4mm母头 | 0~4 |
| FD2-FL4G-S-03 | DC~50 | 1.15 | 0.23, 0.3, 0.38, 0.51 | 2.4mm母头 | 0~4 |
| FD2-FYG-S-01 | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 2.4mm母头 | 0~4 |
| FD2-FYG-S-02 | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 2.4mm母头 | 0~4 |
| FD2-ML2G-S-01 | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 2.4mm公头 | 0~4 |
| FD2-ML2G-S-02 | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 2.4mm公头 | 0~4 |
| FD2-ML2G-S-03 | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 2.4mm公头 | 0~4 |
| FD2-ML4G-S-01 | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 2.4mm公头 | 0~4 |
| FD2-ML4G-S-02 | DC~50 | 1.15 | 0.23, 0.3, 0.51 | 2.4mm公头 | 0~4 |
| FDA-FL2G-S-01 | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | SSMA母头 | 0~4 |
| FDA-FL2G-S-02 | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | SSMA母头 | 0~4 |
| FDA-FL2G-S-03 | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | SSMA母头 | 0~4 |
| FDA-FL2G-S-04 | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | SSMA母头 | 0~4 |
| FDA-FL2G-S-05 | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | SSMA母头 | 0~4 |
| FDA-FL4G-S-01 | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | SSMA母头 | 0~4 |
| FDA-FL4G-S-02 | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | SSMA母头 | 0~4 |
| FDA-FL4G-S-03 | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | SSMA母头 | 0~4 |
| FDA-ML2G-S-01 | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | SSMA公头 | 0~4 |
| FDA-ML2G-S-02 | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | SSMA公头 | 0~4 |
| FDA-ML4G-S-01 | DC~40 | 1.2 | 0.23, 0.3, 0.38, 0.46, 0.51 | SSMA公头 | 0~4 |
| FDK-FL2G-S-01 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm母头 | 0~4 |
| FDK-FL2G-S-02 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm母头 | 0~4 |
| FDK-FL2G-S-03 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm母头 | 0~4 |
| FDK-FL2G-S-04 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm母头 | 0~4 |
| FDK-FL4G-S-01 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm母头 | 0~4 |
| FDK-FL4G-S-02 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm母头 | 0~4 |
| FDK-FL4G-S-03 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm母头 | 0~4 |
| FDK-FYG-S-01 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm母头 | 0~4 |
| FDK-FYG-S-02 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm母头 | 0~4 |
| FDK-ML2G-S-01 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm公头 | 0~4 |
| FDK-ML2G-S-02 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm公头 | 0~4 |
| FDK-ML2G-S-03 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm公头 | 0~4 |
| FDK-ML4G-S-01 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm公头 | 0~4 |
| FDK-ML4G-S-02 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm公头 | 0~4 |
| FDK-ML4G-S-03 | DC~40 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | 2.92mm公头 | 0~4 |
| FDS-FL2G-S-01 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | SMA母头 | 0~4 |
| FDS-FL2G-S-02 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | SMA母头 | 0~4 |
| FDS-FL2G-S-03 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | SMA母头 | 0~4 |
| FDS-FL2G-S-04 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | SMA母头 | 0~4 |
| FDS-FL4G-S-01 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | SMA母头 | 0~4 |
| FDS-FL4G-S-02 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | SMA母头 | 0~4 |
| FDS-FL4G-S-03 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51, 0.91 | SMA母头 | 0~4 |
| FDS-FL4G-S-04 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | SMA母头 | 0~4 |
| FDS-FYG-S-01 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | SMA母头 | 0~4 |
| FDS-ML2G-S-01 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | SMA公头 | 0~4 |
| FDS-ML2G-S-02 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | SMA公头 | 0~4 |
| FDS-ML2G-S-03 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | SMA公头 | 0~4 |
| FDS-ML2G-S-04 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | SMA公头 | 0~4 |
| FDS-ML4G-S-01 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | SMA公头 | 0~4 |
| FDS-ML4G-S-02 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | SMA公头 | 0~4 |
| FDS-ML4G-S-03 | DC~26.5 | 1.15 | 0.23, 0.3, 0.38, 0.46, 0.51 | SMA公头 | 0~4 |
| FDN-FL4G-S-01 | DC~18 | 1.15 | 0.46, 0.51, 0.91 | N母头 | 0~4 |
| FDN-FL4G-S-02 | DC~18 | 1.15 | 0.46, 0.51, 0.91 | N母头 | 0~4 |
| FDN-FL4G-S-03 | DC~18 | 1.15 | 0.46, 0.51, 0.91 | N母头 | 0~4 |
| FDN-ML4G-S-01 | DC~18 | 1.15 | 0.46, 0.51, 0.91 | N公头 | 0~4 |
| FDN-ML4G-S-02 | DC~18 | 1.15 | 0.46, 0.51, 0.91 | N公头 | 0~4 |
| FDN-ML4G-S-03 | DC~18 | 1.15 | 0.46, 0.51, 0.91 | N公头 | 0~4 |
| FDT-FL4G-S-01 | DC~18 | 1.15 | 0.46, 0.51, 0.91 | TNC母头 | 0~4 |
| FDT-FL4G-S-02 | DC~18 | 1.15 | 0.46, 0.51, 0.91 | TNC母头 | 0~4 |
| FDT-ML4G-S-01 | DC~18 | 1.15 | 0.46, 0.51, 0.91 | TNC公头 | 0~4 |
| 金属穿墙式连接器 | |||||
| 型号 | 频率（GHz） | 驻波（最大值） | PIN（Φmm) | 连接器 | 货期（周） |
| FD2-FL2G-M | DC~50 | 1.15 | 0.3 | 2.4mm母头 | 0~4 |
| FD2-FL4G-M | DC~50 | 1.15 | 0.3 | 2.4mmFemale | 0~4 |
| FDA-FL2G-M | DC~40 | 1.2 | 0.6 | SSMA母头 | 0~4 |
| FDA-FL4G-M | DC~40 | 1.2 | 0.6 | SSMA母头 | 0~4 |
| FDK-FL2G-M | DC~40 | 1.15 | 0.3, 0.6 | 2.92mm母头 | 0~4 |
| FDK-FL4G-M | DC~40 | 1.15 | 0.3, 0.6 | 2.92mm母头 | 0~4 |
| FDS-FL2G-M | DC~26.5 | 1.15 | 0.38, 0.8, 0.8*0.2 | SMA母头 | 0~4 |
| FDS-FL4G-M | DC~26.5 | 1.15 | 0.38, 0.8, 1*0.2, 0.8*0.2 | SMA母头 | 0~4 |
| FDS-ML2G-M | DC~26.5 | 1.15 | 0.38 | SMA公头 | 0~4 |
| FDS-ML4G-M | DC~26.5 | 1.15 | 0.38 | SMA公头 | 0~4 |
| FDN-FL4G-M | DC~18 | 1.15 | 1.27 | N母头 | 0~4 |
| FDN-ML4G-M | DC~18 | 1.15 | 1.27 | N公头 | 0~4 |
| FDT-FL4G-M | DC~18 | 1.15 | 0.8 | TNC母头 | 0~4 |
| 介质穿墙式连接器 | |||||
| 型号 | 频率（GHz） | 驻波（最大值） | PIN（Φmm) | 连接器 | 货期（周） |
| FD2-FL2G-P | DC~50 | 1.15 | 0.3, 0.6 | 2.4mm母头 | 0~4 |
| FD2-FL4G-P | DC~50 | 1.15 | 0.3, 0.6 | 2.4mm母头 | 0~4 |
| FDK-FL2G-P | DC~40 | 1.15 | 0.3 | 2.92mm母头 | 0~4 |
| FDK-FL4G-P | DC~40 | 1.15 | 0.3 | 2.92mm母头 | 0~4 |
| FDS-FL2G-P | DC~26.5 | 1.15 | 0.3, 0.64, 1.27, 1*0.2 | SMA母头 | 0~4 |
| FDS-FL4G-P | DC~26.5 | 1.15 | 0.3, 0.64, 1.27, 1*0.2 | SMA母头 | 0~4 |
| FDS-ML2G-P | DC~26.5 | 1.15 | 1*0.2 | SMA公头 | 0~4 |
| FDS-ML4G-P | DC~26.5 | 1.15 | 1*0.2 | SMA公头 | 0~4 |
| 空气线穿墙式连接器 | |||||
| 型号 | 频率（GHz） | 驻波（最大值） | PIN（Φmm) | 连接器 | 货期（周） |
| FDV-FL2G-D | DC~67 | 1.25 | 0.3, 0.58 | 1.85mm母头 | 0~4 |
| FDV-FL4G-D | DC~67 | 1.25 | 0.3, 0.58 | 1.85mm母头 | 0~4 |
| FDV-FYG-D | DC~67 | 1.25 | 0.3 | 1.85mm母头, 1.85mm公头 | 0~4 |
| FD2-FL2G-D | DC~50 | 1.15 | 0.64, 0.75, 0.86, 1, 1.04, 1.2 | 2.4mm母头 | 0~4 |
| FD2-FL2G-D | DC~50 | 1.15 | 0.64, 0.75, 0.86, 1, 1.04, 1.2 | 2.4mm母头 | 0~4 |
| FD2-FYG-D | DC~50 | 1.15 | 0.3 | 2.4mm母头 | 0~4 |
| FD2-ML2G-D | DC~50 | 1.15 | 0.64, 0.86 | 2.4mm公头 | 0~4 |
| FD2-ML4G-D | DC~50 | 1.15 | 0.64, 0.86 | 2.4mm公头 | 0~4 |
| FDK-FL2G-D | DC~40 | 1.15 | 0.3, 0.64, 0.75 | 2.92mm母头 | 0~4 |
| FDK-FL4G-D | DC~40 | 1.15 | 0.3, 0.64, 0.75 | 2.92mm母头 | 0~4 |
| FDK-ML2G-D | DC~40 | 1.15 | 0.64 | 2.92mm公头 | 0~4 |
| FDK-ML4G-D | DC~40 | 1.15 | 0.64 | 2.92mm公头 | 0~4 |
| FDS-FL2G-D | DC~26.5 | 1.15 | 0.64, 0.87, 1.27 | SMA母头 | 0~4 |
| FDS-FL4G-D | DC~26.5 | 1.15 | 0.64, 0.87, 1.27 | SMA母头 | 0~4 |
| 直连式连接器 | |||||
| 型号 | 频率（GHz） | 驻波（最大值） | PIN（Φmm) | 连接器 | 货期（周） |
| FDS-FL2G-T | DC~26.5 | 1.15 | 0.64*0.2, 1.27*0.15 | SMA母头 | 0~4 |
| FDS-FL4G-T | DC~26.5 | 1.15 | 0.64*0.2, 1.27*0.15 | SMA母头 | 0~4 |
| FDN-FL4G-T | DC~18 | 1.15 | 1.5*0.2 | N母头 | 0~4 |
| FDN-ML4G-T | DC~18 | 1.15 | 1.5*0.2 | N公头 | 0~4 |
| FDT-FL4G-T | DC~18 | 1.15 | 1.5*0.2 | TNC母头 | 0~4 |
| FDT-ML4G-T | DC~18 | 1.15 | 1.5*0.2 | TNC公头 | 0~4 |
| 印制板连接器 | |||||
| 型号 | 频率（GHz） | 驻波（最大值） | PIN（Φmm) | 连接器 | 货期（周） |
| FDK-FG-B30 | DC~40 | 1.15 | 0.3 | 2.92mm母头 | 0~4 |
| FDK-FG-B127-01 | DC~40 | 1.15 | 1.27 | 2.92mm母头 | 0~4 |
| FDS-FG-B30 | DC~26.5 | 1.15 | 0.3 | SMA母头 | 0~4 |
| FDS-FG-B127 | DC~26.5 | 1.15 | 1.27 | SMA母头 | 0~4 |
