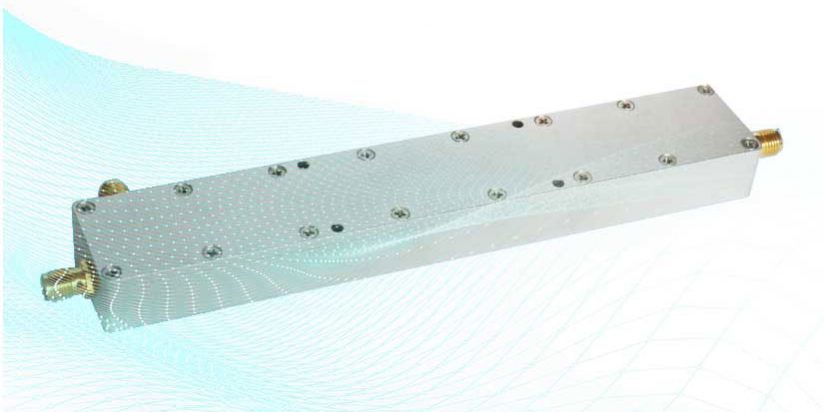

宽带高功率耦合器，频率范围可达40GHz。我们也可以根据客户的需要定制耦合器。不收取定制费，无最小起订量要求。
| 型号 | 频率 | 功率 | 耦合度 | 插损 | 方向性 | 驻波 | 连接器 | 货期 |
| （GHz） | （W） | （dB） | （dB，最大值） | （dB，最小值） | （最大值） | （周） | ||
| FDDC-0.01-250-K6-50-NS | 0.00001~0.25 | 600 | 50±1 | 0.4 | 20 | 1.25 | SMA, N | 2~4 |
| FDDC-80-1000-K6-60-NS | 0.08~1 | 600 | 60±1 | 0.4 | 20 | 1.2 | SMA, N | 2~4 |
| FDDC-100-110-10-10-S | 0.1~0.11 | 10 | 10±1 | 1 | 20 | 1.2 | SMA | 2~4 |
| FDDC-100-700-10-10-S | 0.1~0.7 | 10 | 10±2 | 0.9 | 12 | 1.3 | SMA | 2~4 |
| FDDC-130-470-50-6-S | 0.13~0.47 | 50 | 6±1.2 | 0.7 | 20 | 1.25 | SMA | 2~4 |
| FDDC-200-2000-50-30-S | 0.2~2 | 50 | 30±1.5 | 0.8 | 15 | 1.3 | SMA | 2~4 |
| FDDC-300-800-50-30-S | 0.3~0.8 | 50 | 30±1 | 0.3 | 10 | 1.2 | SMA | 2~4 |
| FDDC-300-2400-30 | 0.3~2.4 | 30 | 10, 20, 30 | 1 | 18 | 1.3 | SMA | 2~4 |
| FDDC-400-2700-K4-40-N | 0.4~2.7 | 400 | 40±1.2 | 0.4 | 20 | 1.2 | N | 2~4 |
| FDDC-400-3000-10-20-S | 0.4~3 | 10 | 20±1 | 0.5 | 20 | 1.3 | SMA | 2~4 |
| FDDC-400-3900-K1-20-N | 0.4~3.9 | 100 | 20±2 | 0.5 | 17 | 1.2 | SMA, N | 2~4 |
| FDDC-400-18000-50 | 0.4~18 | 50 | 10±1.5, 20±1.5 | 1.5 | 10 | 1.8 | SMA | 2~4 |
| FDDC-400-20000-10-20-S | 0.4~20 | 10 | 20±1.5 | 1.5 | 8 | 1.5 | SMA | 2~4 |
| FDDC-450-2500-50-6-S | 0.45~2.5 | 50 | 6±1 | 0.8 | 18 | 1.2 | SMA | 2~4 |
| FDDC-450-6000-30 | 0.45~6 | 30 | 10, 20, 30 | 1.2 | 12 | 1.5 | SMA | 2~4 |
| FDDC-500-1000-30 | 0.5~1 | 30 | 10, 20, 30 | 0.4 | 20 | 1.3 | SMA | 2~4 |
| FDDC-500-2000-10-15-S | 0.5~2 | 15 | 15±1 | 1 | 18 | 1.3 | SMA | 2~4 |
| FDDC-500-2000-30 | 0.5~2 | 30 | 10, 20, 30 | 0.8 | 20 | 1.25 | SMA | 2~4 |
| FDDC-500-6000-50-20-S | 0.5~6 | 50 | 20±1 | 0.6 | 18 | 1.25 | SMA | 2~4 |
| FDDC-500-8000-50-10-S | 0.5~8 | 50 | 10±1 | 1.2 | 15 | 1.4 | SMA | 2~4 |
| FDDC-500-18000-20-20-S | 0.5~18 | 20 | 20±1.5 | 2 | 10 | 1.7 | SMA | 2~4 |
| FDDC-500-18000-50 | 0.5~18 | 50 | 10±1, 20±1, 30±1.5 | 1.6 | 10 | 1.6 | SMA | 2~4 |
| FDDC-500-18000-50-20-N | 0.5~18 | 50 | 20 | 1 | 15 | 1.4 | N | 2~4 |
| FDDC-600-6000-50 | 0.6~6 | 50 | 10±1, 30±1 | 1 | 15 | 1.3 | SMA | 2~4 |
| FDDC-600-6000-50-20-S | 0.6~6 | 50 | 20±1.2 | 0.8 | 18 | 1.3 | SMA | 2~4 |
| FDDC-700-6000-50-20-N | 0.7~6 | 50 | 20±1 | 0.7 | 16 | 1.3 | N | 2~4 |
| FDDC-800-2500-K2-20-N | 0.8~2.5 | 200 | 20±1 | 0.3 | 18 | 1.25 | N | 2~4 |
| FDDC-800-2700-50-10-S | 0.8~2.7 | 50 | 10±1 | 1 | 18 | 1.2 | SMA | 2~4 |
| FDDC-1000-4000-30 | 1~4 | 30 | 10, 20, 30 | 1 | 20 | 1.3 | SMA | 2~4 |
| FDDC-1000-4000-50 | 1~4 | 50 | 10±1, 20±1 | 0.8 | 20 | 1.3 | SMA, N | 2~4 |
| FDDC-1000-6000-K1-10-N | 1~6 | 100 | 10±0.8 | 0.7 | 10 | 1.4 | SMA | 2~4 |
| FDDC-1000-18000-30 | 1~18 | 30 | 10, 20, 30 | 1.5 | 10 | 1.6 | SMA | 2~4 |
| FDDC-1000-40000-30-20-K | 1~40 | 30 | 20±1.2 | 2.8 | 10 | 1.7 | 2.92mm | 2~4 |
| FDDC-1000-44000-1-10-2 | 1~44 | 1 | 10 | 2.5 | 10 | 2 | 2.4mm | 2~4 |
| FDDC-2000-2500-K5-40-NS | 2~2.5 | 500 | 40 | 0.4 | 15 | 1.4 | N, SMA | 2~4 |
| FDDC-2000-4000-50 | 2~4 | 50 | 10±1, 20±1, 30±1 | 1 | 18 | 1.3 | SMA, N | 2~4 |
| FDDC-2000-4000-K4-40-N | 2~4 | 400 | 40±1.5 | 0.5 | 10 | 1.3 | SMA | 2~4 |
| FDDC-2000-8000-50-6-S | 2~8 | 50 | 6±1 | 0.2 | 18 | 1.3 | SMA | 2~4 |
| FDDC-2000-8000-50-10-S | 2~8 | 50 | 10 | 1.2 | 16 | 1.3 | SMA | 2~4 |
| FDDC-2000-12000-30-10-S | 2~12 | 30 | 10 | 1.1 | 12 | 1.5 | SMA | 2~4 |
| FDDC-2000-18000-30 | 2~18 | 30 | 10, 20, 30 | 1 | 10 | 1.6 | SMA | 2~4 |
| FDDC-2000-18000-K2-50-N | 2~18 | 200 | 50±2 | 0.5 | 15 | 1.4 | SMA, N | 2~4 |
| FDDC-2000-40000-30-10-K | 2~40 | 30 | 10±1.5 | 2 | 10 | 1.7 | 2.92mm | 2~4 |
| FDDC-2000-40000-30-16-K | 2~40 | 30 | 16±1.2 | 1.5 | 10 | 1.6 | 2.92mm | 2~4 |
| FDDC-2000-67000-10-16-V | 2~67 | 10 | 16±1.4 | 3.5 | 8 | 2 | 1.85mm | 2~4 |
| FDDC-2200-2300-20 | 2.2~2.3 | 20 | 10±1, 20±1 | 0.5 | 20 | 1.3 | N | 2~4 |
| FDDC-2300-2600-K5-40-NS | 2.3~2.6 | 500 | 40±0.5 | 0.4 | 20 | 1.25 | N, SMA | 2~4 |
| FDDC-2500-6000-50-6-S | 2.5~6 | 50 | 6±1 | 0.8 | 20 | 1.2 | SMA | 2~4 |
| FDDC-3000-6000-10-20-S | 3~6 | 10 | 20±1 | 0.5 | 18 | 1.3 | SMA | 2~4 |
| FDDC-3400-4200-50-30-S | 3.4~4.2 | 50 | 30±1 | 0.5 | 15 | 1.3 | SMA | 2~4 |
| FDDC-3500-4500-10-20-S | 3.5~4.5 | 10 | 20±1 | 0.5 | 20 | 1.3 | SMA | 2~4 |
| FDDC-3800-4300-50-20-N | 3.8~4.3 | 50 | 20±1 | 0.5 | 20 | 1.3 | N | 2~4 |
| FDDC-4000-6000-K4-40-N | 4~6 | 400 | 40±1.5 | 0.6 | 10 | 1.3 | SMA, N | 2~4 |
| FDDC-4000-8000-50-10-S | 4~8 | 50 | 10±1 | 1 | 16 | 1.3 | SMA | 2~4 |
| FDDC-4000-12000-50-6-S | 4~12 | 50 | 6±1 | 1.2 | 12 | 1.5 | SMA | 2~4 |
| FDDC-4000-16000-30-10-S | 4~16 | 30 | 10±1.2 | 1.2 | 12 | 1.5 | SMA | 2~4 |
| FDDC-4000-18000-20 | 4~18 | 20 | 10±1, 20±1, 30±1 | 1 | 10 | 1.5 | SMA | 2~4 |
| FDDC-4000-30000-30-20-K | 4~30 | 30 | 20±1 | 1.5 | 12 | 1.6 | 2.92mm | 2~4 |
| FDDC-6000-18000-50 | 6~18 | 50 | 10±1, 20±1, 30±1 | 1 | 12 | 1.5 | SMA | 2~4 |
| FDDC-6500-11500-20-20-S | 6.5~11.5 | 20 | 20±1 | 1 | 12 | 1.5 | SMA | 2~4 |
| FDDC-7000-12400-50 | 7~12.4 | 50 | 10±1, 20±1, 30±1 | 1 | 12 | 1.5 | SMA | 2~4 |
| FDDC-8000-8400-20 | 8~8.4 | 20 | 10±1, 20±1 | 1 | 12 | 1.6 | N | 2~4 |
| FDDC-8000-12000-40-15-S | 8~12 | 40 | 15±1 | 0.8 | 12 | 1.5 | SMA | 2~4 |
| FDDC-10750-12750-50-30-S | 10.75~12.75 | 50 | 30±1 | 0.5 | 15 | 1.4 | SMA | 2~4 |
| FDDC-12000-13000-10-6-S | 12~13 | 10 | 6±1 | 0.8 | 12 | 1.5 | SMA | 2~4 |
| FDDC-12000-18000-50-30-S | 12~18 | 50 | 30±1 | 1 | 12 | 1.5 | SMA | 2~4 |
| FDDC-12400-18000-50 | 12.4~18 | 50 | 10±1, 20±1 | 0.8 | 12 | 1.4 | SMA | 2~4 |
| FDDC-14000-15000-50 | 14~15 | 50 | 10±1, 20±1 | 0.6 | 15 | 1.4 | SMA | 2~4 |
| FDDC-18000-31000-30-20-K | 18~31 | 30 | 20±1 | 1.4 | 12 | 1.6 | 2.92mm | 2~4 |
| FDDC-18000-40000-20 | 18~40 | 20 | 10±1, 20±1, 30±1 | 1.6 | 10 | 1.6 | 2.92mm | 2~4 |
| FDDC-20000-50000-10 | 20~50 | 10 | 10±1.2, 20±1.2, 30±1.2 | 1.8 | 8 | 1.9 | 2.4mm | 2~4 |
