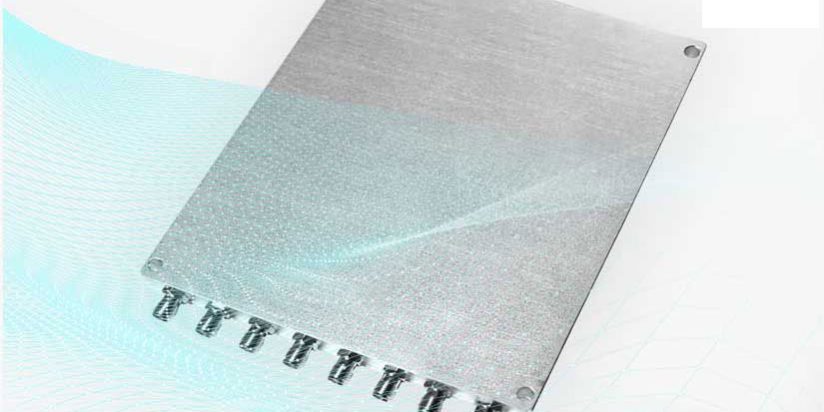

8路功分器/合路器,频率范围为DC~66GHz,功率高达250W。我们的8路功分器/合路器广泛应用于许多领域。
型号 | 频率 | 功率 | 插损 | 隔离度 | 幅度平衡 | 相位平衡 | 驻波 | 连接器 | 货期 |
(GHz) | (W) | (dB,最大值) | (dB,最小值) | (dB,最大值) | (°,最大值) | (最大值) | (周) | ||
QPD8-0-2000-2-N | DC~2 | 2 | 22 | 20 | ±0.4 | ±5 | 1.3 | N | 2~3 |
QPD8-0-3000 | DC~3 | 2 | 23 | 17 | ±0.6 | ±8 | 1.3 | SMA, N | 2~3 |
QPD8-0-4000-2-S | DC~4 | 2 | 19.5 | 17 | 0.8 | ±8 | 1.4 | SMA | 2~3 |
QPD8-0-6000-2-S | DC~6 | 2 | 18±2.5 | 18 | ±1.2 | – | 1.5 | SMA | 2~3 |
QPD8-0-8000 | DC~8 | 2 | 20±1.5 | 18 | ±1.8 | – | 1.6 | SMA | 2~3 |
QPD8-0-10000 | DC~10 | 0.5 | 18±2.8 | – | ±2 | – | 1.6 | SMA | 2~3 |
QPD8-0-18000-1-S | DC~18 | 1 | 23 | 18 | ±1.4 | – | 2.5 | SMA | 2~3 |
QPD8-5-1000-1-S | 0.005~1 | 1 | 3 | 18 | 0.5 | ±10 | 1.5 | SMA | 2~3 |
QPD8-10-100-1-S | 0.01~0.1 | 1 | 1 | 20 | 0.4 | ±4 | 1.3 | SMA | 2~3 |
QPD8-30-3000-2-S | 0.03~3 | 2 | 18.5 | 17 | 0.5 | ±5 | 1.3 | SMA | 2~3 |
QPD8-80-500-30-S | 0.08~0.5 | 30 | 1.8 | 18 | ±0.2 | ±3 | 1.3 | SMA | 2~3 |
QPD8-80-4000-30-S | 0.08~4 | 30 | 6.6 | 13 | 0.4 | ±8 | 1.55 | SMA | 2~3 |
QPD8-98-102-30-N | 0.098~0.102 | 30 | 0.8 | 20 | 0.2 | ±3 | 1.2 | N | 2~3 |
QPD8-100-700-1-S | 0.1~0.7 | 1 | 2 | 18 | 0.4 | ±8 | 1.5 | SMA | 2~3 |
QPD8-100-700-30-S | 0.1~0.7 | 30 | 2 | 20 | 0.3 | ±3 | 1.25 | SMA | 2~3 |
QPD8-100-2000-30-S | 0.1~2 | 30 | 3.4 | 18 | 0.3 | ±4 | 1.35 | SMA | 2~3 |
QPD8-100-3000-30-S | 0.1~3 | 30 | 6.5 | 18 | 0.3 | ±6 | 1.35 | SMA | 2~3 |
QPD8-100-4000-30-SMS | 0.1~4 | 30 | 6.5 | 12 | 0.5 | ±6 | 1.55 | SMA | 2~3 |
QPD8-200-1000 | 0.2~1 | 30 | 1.4 | 20 | 0.4 | ±4 | 1.25 | SMA | 2~3 |
QPD8-200-2000-30-S | 0.2~2 | 30 | 2.8 | 18 | 0.3 | ±4 | 1.3 | SMA | 2~3 |
QPD8-200-2300-30-S | 0.2~2.3 | 30 | 3 | 18 | 0.3 | ±4 | 1.3 | SMA | 2~3 |
QPD8-200-6000 | 0.2~6 | 30 | 6.8 | 17 | 0.5 | ±5 | 1.35 | SMA | 2~3 |
QPD8-223-235 | 0.223~0.235 | 30 | 1.2 | 20 | 0.4 | ±4 | 1.3 | SMA | 2~3 |
QPD8-240 | 0.24 | 30 | 0.6 | 20 | ±0.2 | ±2 | 1.2 | SMA | 2~3 |
QPD8-300-500 | 0.3~0.5 | 30 | 0.8 | 20 | 0.2 | ±3 | 1.25 | SMA | 2~3 |
QPD8-300-3000-NS | 0.3~3 | 30 | 2.6 | 20 | 0.3 | ±4 | 1.3 | SMA, N | 2~3 |
QPD8-300-3000 | 0.3~3 | 30 | 3 | 20 | 0.3 | ±4 | 1.35 | SMA | 2~3 |
QPD8-300-6000-30-S | 0.3~6 | 30 | 5.2 | 18 | 0.4 | ±5 | 1.4 | SMA | 2~3 |
QPD8-400-900-30-B | 0.4~0.9 | 30 | 0.6 | 20 | 0.3 | ±3 | 1.25 | BNC | 2~3 |
QPD8-400-4000 | 0.4~4 | 30 | 2.4 | 20 | 0.4 | ±4 | 1.35 | N | 2~3 |
QPD8-400-6000-30-S | 0.4~6 | 30 | 3.2 | 20 | 0.4 | ±5 | 1.35 | SMA | 2~3 |
QPD8-400-6000-80-S | 0.4~6 | 80 | 6 | 18 | 0.3 | ±6 | 1.6 | SMA | 2~3 |
QPD8-450-6000 | 0.45~6 | 30 | 3.2 | 18 | 0.3 | ±4 | 1.35 | SMA | 2~3 |
QPD8-470-510-10-S | 0.47~0.51 | 10 | 2 | 20 | ±0.5 | ±5 | 1.3 | SMA | 2~3 |
QPD8-470-510-20-S | 0.47~0.51 | 20 | 1.5 | 20 | ±0.5 | ±5 | 1.3 | SMA | 2~3 |
QPD8-500-2000-30-S | 0.5~2 | 30 | 1.5 | 20 | 0.4 | ±4 | 1.3 | SMA | 2~3 |
QPD8-500-3000 | 0.5~3 | 30 | 1.8 | 20 | 0.4 | ±4 | 1.3 | SMA, N | 2~3 |
QPD8-500-4000-30-NS | 0.5~4 | 30 | 2 | 20 | 0.3 | ±4 | 1.3 | SMA, N | 2~3 |
QPD8-500-4000 | 0.5~4 | 30 | 2.3 | 20 | 0.2 | ±4 | 1.3 | SMA | 2~3 |
QPD8-500-6000 | 0.5~6 | 30 | 3 | 18 | 0.4 | ±5 | 1.4 | SMA, N | 2~3 |
QPD8-500-8000 | 0.5~8 | 30 | 6 | 18 | 0.4 | ±5 | 1.45 | SMA, N | 2~3 |
QPD8-500-18000-20-S | 0.5~18 | 20 | 6 | 14 | 0.8 | ±10 | 2 | SMA | 2~3 |
QPD8-600-2000 | 0.6~2 | 30 | 1 | 20 | 0.3 | ±4 | 1.25 | SMA | 2~3 |
QPD8-600-6000 | 0.6~6 | 30 | 3.2 | 18 | 0.4 | ±5 | 1.4 | SMA, N | 2~3 |
QPD8-600-8000-30-S | 0.6~8 | 30 | 3.6 | 20 | 0.4 | ±5 | 1.4 | SMA | 2~3 |
QPD8-700-3000 | 0.7~3 | 30 | 1.2 | 20 | 0.4 | ±4 | 1.3 | SMA, N | 2~3 |
QPD8-700-4000 | 0.7~4 | 30 | 1.8 | 20 | ±0.4 | ±4 | 1.3 | N | 2~3 |
QPD8-750-1710 | 0.75~1.71 | 30 | 0.6 | 20 | 0.3 | ±3 | 1.2 | SMA | 2~3 |
QPD8-800-2000-30-S | 0.8~2 | 30 | 1 | 20 | 0.3 | ±4 | 1.25 | SMA | 2~3 |
QPD8-800-2500-30-N | 0.8~2.5 | 30 | 1.4 | 20 | 0.4 | ±4 | 1.25 | N | 2~3 |
QPD8-800-2700-30-N | 0.8~2.7 | 30 | 1.5 | 20 | 0.4 | ±4 | 1.3 | N | 2~3 |
QPD8-800-4200 | 0.8~4.2 | 30 | 1.8 | 20 | 0.4 | ±4 | 1.4 | SMA | 2~3 |
QPD8-800-5000-20-S | 0.8~5 | 20 | 1.5 | 20 | ±0.4 | ±3 | 1.4 | SMA | 2~3 |
QPD8-800-6000-20-S | 0.8~6 | 20 | 2 | 20 | 0.4 | ±5 | 1.35 | SMA | 2~3 |
QPD8-800-8000-30-S | 0.8~8 | 30 | 3.6 | 20 | 0.4 | ±5 | 1.4 | SMA | 2~3 |
QPD8-950-2150 | 0.95~2.15 | 30 | 3 | 20 | 0.4 | ±4 | 1.25 | SMA, N, TNC, N&SMA | 2~3 |
QPD8-1000-1700-30-S | 1~1.7 | 30 | 0.8 | 22 | ±0.4 | ±4 | 1.25 | SMA | 2~3 |
QPD8-1000-3000-30-S | 1~3 | 30 | 1 | 18 | 0.3 | ±4 | 1.3 | SMA | 2~3 |
QPD8-1000-6000-30-S | 1~6 | 30 | 1.6 | 20 | 0.3 | ±4 | 1.3 | SMA | 2~3 |
QPD8-1000-18000-20-S | 1~18 | 20 | 4 | 15 | ±0.5 | ±10 | 1.8 | SMA | 2~3 |
QPD8-1100-1700-30-T | 1.1~1.7 | 30 | 0.8 | 22 | 0.3 | ±3 | 1.25 | TNC | 2~3 |
QPD8-1500-1700-20-S | 1.5~1.7 | 20 | 0.3 | 20 | ±0.2 | ±4 | 1.25 | SMA | 2~3 |
QPD8-1500-5000-30-S | 1.5~5 | 30 | 1.2 | 20 | ±0.2 | ±2 | 1.3 | SMA | 2~3 |
QPD8-1525-1850-K1-N | 1.525~1.85 | 100 | 0.8 | 18 | 0.3 | ±4 | 1.2 | N | 2~3 |
QPD8-1850-2700-K25-N | 1.85~2.7 | 250 | 0.8 | 18 | 0.4 | ±4 | 1.3 | N | 2~3 |
QPD8-2000-6000 | 2~6 | 30 | 1.2 | 18 | 0.4 | ±4 | 1.3 | SMA, N | 2~3 |
QPD8-2000-8000-30-S | 2~8 | 30 | 1.5 | 18 | 0.4 | ±5 | 1.35 | SMA | 2~3 |
QPD8-2000-10000-30-S | 2~10 | 30 | 2 | 18 | ±0.4 | ±4 | 1.4 | SMA | 2~3 |
QPD8-2000-18000-20-S | 2~18 | 20 | 3.2 | 16 | 0.5 | ±10 | 1.6 | SMA | 2~3 |
QPD8-2000-26500 | 2~26.5 | 20 | 3.2 | 16 | ±0.8 | ±10 | 1.9 | SMA, 2.92mm | 2~3 |
QPD8-2400-6000-30-S | 2.4~6 | 30 | 1.5 | 20 | 0.4 | ±4 | 1.35 | SMA | 2~3 |
QPD8-3000-13000-20-S | 3~13 | 20 | 2 | 18 | ±0.4 | ±6 | 1.4 | SMA | 2~3 |
QPD8-4000-6000-30-S | 4~6 | 30 | 1.2 | 18 | ±0.4 | ±4 | 1.4 | SMA | 2~3 |
QPD8-4000-8000-30-S | 4~8 | 30 | 0.8 | 18 | ±0.3 | ±5 | 1.35 | SMA | 2~3 |
QPD8-4000-12000-20-S | 4~12 | 20 | 1.5 | 18 | 0.2 | ±4 | 1.5 | SMA | 2~3 |
QPD8-4900-5900-30-S | 4.9~5.9 | 30 | 0.8 | 20 | 0.3 | ±3 | 1.3 | SMA | 2~3 |
QPD8-5000-12000-20-S | 5~12 | 20 | 1.2 | 18 | 0.5 | ±5 | 1.4 | SMA | 2~3 |
QPD8-6000-12000-20-SM | 6~12 | 20 | 1.5 | 18 | 0.4 | ±5 | 1.5 | SMA | 2~3 |
QPD8-6000-18000-50-S | 6~18 | 50 | 2.4 | 17 | ±0.5 | ±8 | 1.8 | SMA | 2~3 |
QPD8-6000-18000-K1-S | 6~18 | 100 | 2.4 | 15 | ±0.5 | ±8 | 1.8 | SMA | 2~3 |
QPD8-6000-43500-20-K | 6~43.5 | 20 | 3.2 | 15 | ±0.5 | ±8 | 2.2 | 2.92mm | 2~3 |
QPD8-8000-12000-20-S | 8~12 | 20 | 1.4 | 18 | 0.4 | ±5 | 1.4 | SMA | 2~3 |
QPD8-9000-11000-20-S | 9~11 | 20 | 1.2 | 18 | 0.4 | ±5 | 1.4 | SMA | 2~3 |
QPD8-9000-45000-R1-2 | 9~45 | 0.1 | 7 | 15 | ±1 | ±20 | 1.4 | 2.4mm | 2~3 |
QPD8-18000-40000-20-K | 18~40 | 20 | 3.2 | 16 | ±0.5 | ±8 | 1.7 | 2.92mm | 2~3 |
QPD8-18600-26500-20-K | 18.6~26.5 | 20 | 2.4 | 15 | ±0.6 | ±6 | 1.8 | 2.92mm | 2~3 |
QPD8-50000-66000-R1 | 50~66 | 0.1 | 6 | 15 | ±1 | ±20 | 1.4 | – | 2~3 |
