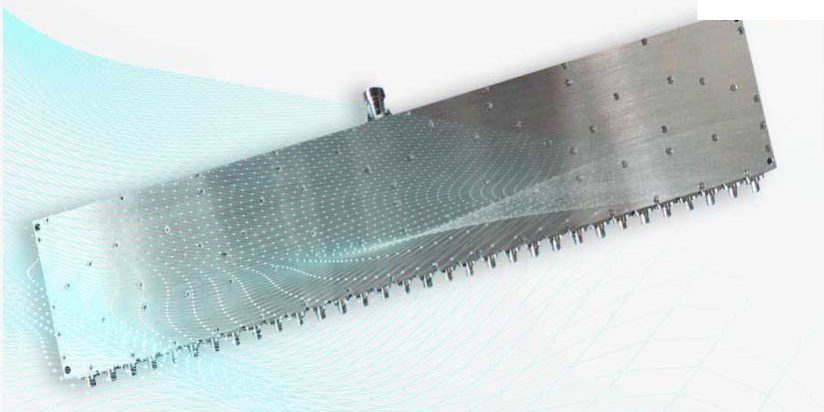

DC~0.433GHz频率范围的24路功分器/合路器,功率可达30W。
型号 | 频率 | 功率 | 插损 | 隔离度 | 幅度平衡 | 相位平衡 | 驻波 | 连接器 | 货期 |
(GHz) | (W) | (dB,最大值) | (dB,最小值) | (dB,最大值) | (°,最大值) | (最大值) | (周) | ||
QPD32-400-490-30-S | 0.4~0.49 | 30 | 1.6 | 22 | 0.3 | ±3 | 1.25 | SMA | 2~3 |
QPD32-700-3000-30-S | 0.7~0.3 | 30 | 2 | 18 | 0.4 | ±5 | 1.4 | SMA | 2~3 |
QPD32-700-4000 | 0.7~4 | 100 | 2.8 | 18 | ±0.5 | ±8 | 1.5 | N | 2~3 |
QPD32-1000-2000-30-S | 1~2 | 30 | 1.4 | 18 | 0.5 | ±5 | 1.4 | SMA | 2~3 |
QPD32-1000-4000-K1-N | 1~4 | 100 | 2.2 | 18 | ±0.5 | ±8 | 1.5 | N | 2~3 |
